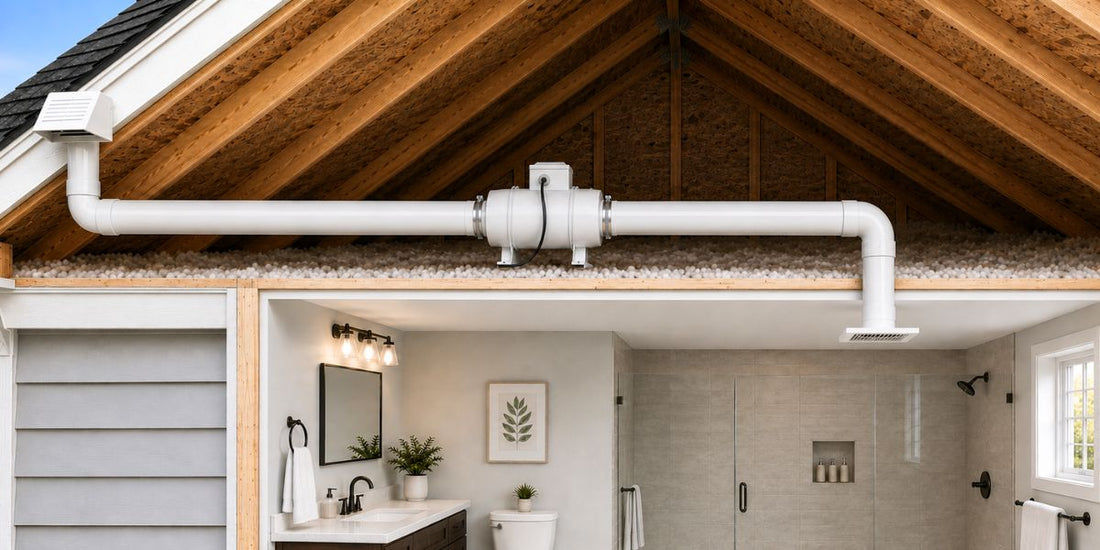

Why Your Exhaust Fan Isn’t Moving the Air You Expected: CFM vs. Static Pressure
Share
Choosing an exhaust fan often starts with one number: CFM. A fan rated at 300 CFM should move 300 cubic feet of air per minute, right?
Not necessarily.
The airflow printed on a fan specification sheet is measured under defined test conditions. Once that fan is installed in a real duct system, with elbows, grilles, reducers, dampers and long duct runs the amount of air it actually moves can be significantly different.
The missing part of the equation is static pressure. Understanding the relationship between CFM and static pressure can help homeowners, contractors and HVAC professionals choose the right exhaust or inline fan for a ventilation system instead of simply selecting the fan with the highest airflow rating.
What Does CFM Mean on an Exhaust Fan?
CFM stands for cubic feet per minute and measures the volume of air a fan can move.
For example, a fan rated for 300 CFM is theoretically capable of moving 300 cubic feet of air every minute under the conditions used to establish that rating. CFM is important because different applications require different amounts of ventilation.
A small bathroom may require significantly less airflow than a large garage, commercial exhaust system or long duct ventilation system. However, the advertised maximum CFM should not be viewed as a guarantee of the airflow you will receive after installation.
Every component installed between the fan and the exterior termination creates resistance to airflow. The greater that resistance becomes, the harder the fan must work to move air through the system.
That resistance is commonly measured as static pressure.
What Is Static Pressure in a Ventilation System?
Static pressure is the resistance that a fan must overcome to move air through ductwork and ventilation components. It is commonly measured in inches of water gauge, often written as in. w.g.
You can think of static pressure as the amount of resistance standing between the fan and the airflow it is trying to produce. A fan connected to a short, straight duct will generally experience relatively little resistance.
Add several elbows, a long duct run, a restrictive grille and a backdraft damper, and the resistance increases. As static pressure increases, the airflow produced by most fans decreases.
That is why two identical fans installed in two different homes can produce noticeably different airflow.
CFM vs. Static Pressure: Why the Difference Matters
CFM and static pressure are directly related. A fan may produce its highest airflow when operating against very little resistance. As the resistance within the duct system rises, the delivered CFM usually falls.
For example, imagine an inline fan with a maximum airflow rating of 350 CFM. In an unrestricted test environment, the fan may approach that figure.
Once installed in a system containing:
- 30 feet of ductwork
- three 90-degree elbows
- an exterior wall hood
- a backdraft damper
- an interior exhaust grille
…the actual airflow at the grille will be considerably lower.
This does not necessarily mean the fan is defective. It may simply be operating farther along its fan performance curve because of increased static pressure.
What Is a Fan Performance Curve?
A fan curve shows how much airflow a fan can produce at different static pressures.
Instead of looking only at a maximum CFM number, a fan curve lets you see how the fan performs as resistance increases.
Typically, airflow appears on one axis and static pressure appears on the other. At lower static pressure, airflow is generally higher. As static pressure increases, airflow decreases.
This information is particularly important when selecting a fan for:
- long duct runs
- multiple exhaust points
- commercial ventilation systems
- dryer exhaust applications
- garage ventilation
- systems containing several elbows
- small-diameter ductwork
For demanding duct systems, a fan capable of maintaining airflow against higher static pressure may perform better than another fan with a larger advertised maximum CFM.
What Causes Static Pressure in Ductwork?
Almost every part of a ventilation system contributes some amount of resistance.
Long Duct Runs
The farther air has to travel through ductwork, the greater the cumulative resistance. A fan exhausting through five feet of duct will normally have an easier job than the same fan exhausting through 50 feet of duct.
This is one reason long ventilation runs frequently benefit from an inline centrifugal fan rather than a basic low-pressure exhaust fan.
Elbows and Turns
Every change in direction disrupts airflow. A series of sharp 90-degree elbows can create substantially more resistance than a straight duct run.
When possible, smoother transitions and gradual bends can help reduce pressure loss.
Undersized Ductwork
Connecting a powerful fan to ductwork that is too small can restrict airflow.
For example, reducing a 6-inch fan connection into significantly smaller ductwork does not mean the fan will simply force the same amount of air through the smaller opening.
The restriction increases system pressure and may substantially reduce delivered airflow.
Grilles and Exterior Hoods
Interior exhaust grilles, louvers and exterior wall caps also create resistance. Some decorative or restrictive grilles can produce considerably more pressure drop than more open designs.
Backdraft Dampers
Backdraft dampers are useful for preventing unwanted outdoor air from travelling backward through an exhaust system when the fan is off. However, the fan must overcome the resistance created by the damper when operating.
Filters
Some ventilation systems use filters to protect equipment or improve incoming air quality. Filters also create pressure drop, and that resistance can increase as the filter becomes dirty.
Why Centrifugal Inline Fans Are Often Used for Higher Static Pressure
Not all fans are designed for the same type of ventilation system. Basic axial fans can work very well when air only needs to travel through a relatively short and uncomplicated duct path. More demanding applications may require a fan designed to generate greater pressure.
Centrifugal inline fans use an impeller design intended to provide stronger performance against duct resistance.
This makes them particularly useful for:
- long duct systems
- complex duct layouts
- systems with multiple fittings
- commercial ventilation
- remote bathroom exhaust
- range hood ventilation
- duct system augmentation
For example, the Vents VKM and VKM EC Series centrifugal inline fans use backward-curved impellers designed for applications where higher pressure capability is required.
The VKM EC models also incorporate electronically commutated motors, allowing efficient variable-speed operation when paired with a compatible controller.
For less demanding duct systems, mixed-flow or axial inline fans may provide an effective solution while offering compact installation and strong airflow.
The key is matching the fan type to the resistance within the ventilation system.
Does a Bigger CFM Fan Solve a Static Pressure Problem?
Not always. Simply purchasing a fan with a higher maximum CFM rating may not solve an airflow problem if the duct system itself creates excessive resistance.
Before increasing fan size, examine the complete airflow path.
Questions worth asking include:
- Is the duct diameter large enough?
- Is the duct unnecessarily long?
- Are there too many elbows?
- Is flexible duct compressed or sharply bent?
- Is the exterior hood restrictive?
- Is a damper stuck or partially closed?
- Is the fan designed for higher static pressure?
- Are filters or grilles restricting airflow?
Correcting one of these issues may improve airflow without requiring a dramatically larger fan.
Can a 400 CFM Fan Actually Move Less Air Than a 300 CFM Fan?
Yes.
If the 400 CFM fan is optimized for low-pressure applications while the 300 CFM fan is designed to maintain airflow against higher static pressure, the lower-rated fan may move more air in a restrictive duct system.
This is why maximum CFM alone is not enough to compare exhaust fans. Fan type, duct configuration and performance at operating pressure all matter.
This becomes especially important with inline fans, where the fan may be located many feet away from the exhaust grille.
How Can You Improve Airflow Through an Existing Exhaust System?
If an exhaust fan seems weaker than expected, the fan itself may not be the only place to look. Improving the duct system can often improve fan performance.
Consider:
- using the recommended duct diameter
- minimizing unnecessary elbows
- shortening the duct run when practical
- replacing crushed or sagging flexible duct
- using smoother ductwork
- checking exterior hoods for blockage
- cleaning dirty grilles
- checking backdraft dampers
- verifying that the fan is installed in the correct airflow direction
A properly designed duct system allows the fan to operate closer to its intended performance range.
What Type of Fan Is Best for a Long Duct Run?
For longer or more restrictive duct systems, an inline fan with stronger static pressure capability is often preferable.
Centrifugal inline fans are particularly well suited to these applications because their impeller design allows them to overcome more duct resistance than many basic axial exhaust fans.
Vents-US offers several inline fan families for different airflow and pressure requirements, including Turbo Tube Hybrid inline fans, VKM centrifugal inline fans and energy-efficient VKM EC models.
The correct choice depends on required airflow, duct diameter, duct length and the overall resistance of the system.
CFM vs. Static Pressure FAQ
Does duct length reduce CFM?
Yes. Longer ductwork adds friction, increasing static pressure and generally reducing the amount of airflow delivered by the fan.
Do elbows reduce exhaust fan airflow?
Yes. Elbows and other fittings create additional resistance. Multiple sharp turns can have a significant effect on airflow.
Does smaller ducting increase airflow?
No. Reducing duct diameter generally increases resistance and air velocity while potentially decreasing the total airflow delivered by the fan.
What does maximum CFM mean?
Maximum CFM typically represents the highest airflow a fan can produce under low-resistance test conditions. Real-world airflow depends on the pressure created by the installed duct system.
Are inline fans better for long duct runs?
They can be. Inline centrifugal and mixed-flow fans are commonly used when airflow must travel farther or overcome greater duct resistance.
How do I know how much static pressure my duct system has?
Accurate static pressure measurement normally requires appropriate HVAC testing equipment. For more complex systems, a qualified HVAC professional can calculate or measure system resistance and compare it with the fan's performance curve.
Choose a Fan for the System, Not Just the CFM Number
CFM is important, but it tells only part of the story. The amount of air an exhaust fan actually moves depends on how much resistance the fan must overcome once it is installed.
Duct length, duct diameter, elbows, grilles, dampers and other components all contribute to static pressure and increasing static pressure generally reduces delivered airflow.
When selecting an exhaust or inline fan, look beyond the maximum CFM rating.
Consider the complete duct system and choose a fan designed to provide the required airflow at the pressure conditions it will actually encounter.
For short, simple duct runs, a compact axial or mixed-flow fan may be an excellent solution. For longer or more complicated duct systems, a centrifugal inline fan such as the Vents VKM or VKM EC Series may provide the additional pressure capability needed to maintain effective ventilation.
Understanding CFM vs. static pressure makes it much easier to select the right fan the first time, and helps explain why the highest CFM number on the box isn't always the fan that will move the most air in your home or building.
