Vents Airlite Series Commercial ERVs
Vents Airlite Series Commercial ERVs
Low stock
Free Shipping on all orders. You're shopping manufacturer direct with Vents-US.

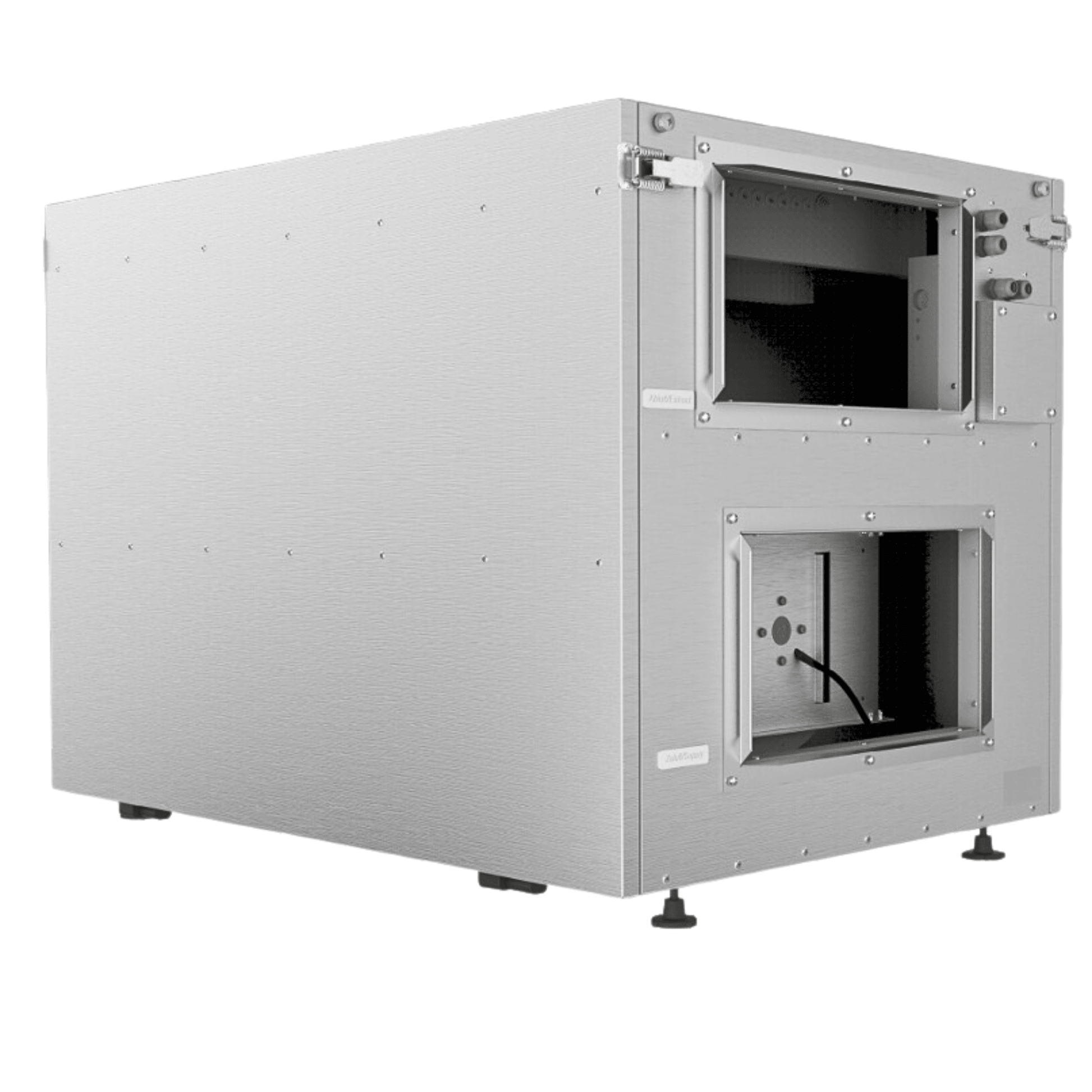

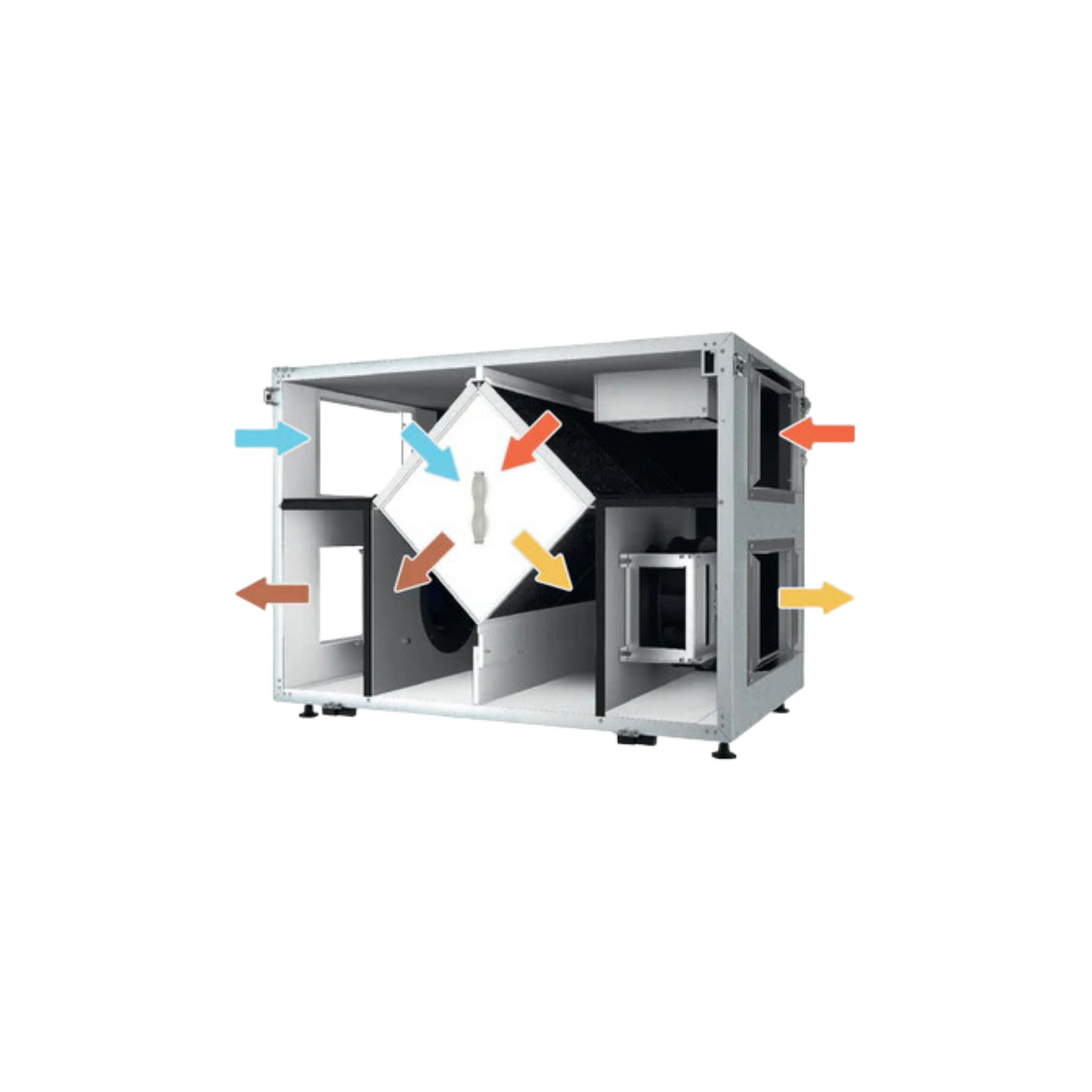

Experience the cutting-edge innovation of AIRLITE Energy Recovery Ventilators, available in a versatile range of three different sizes with up to 1785 CFM for the most demanding Commercial airflow requirements.
Whether you require one, two, or three fans on both the supply and exhaust sides, our units are tailored to meet the unique demands of commercial applications and each unit features state-of-the-art supply and exhaust centrifugal fans equipped with backward curved blades. For added protection a fan stop defrost system is activated when the outdoor temperature falls below 23° F (-5° C).

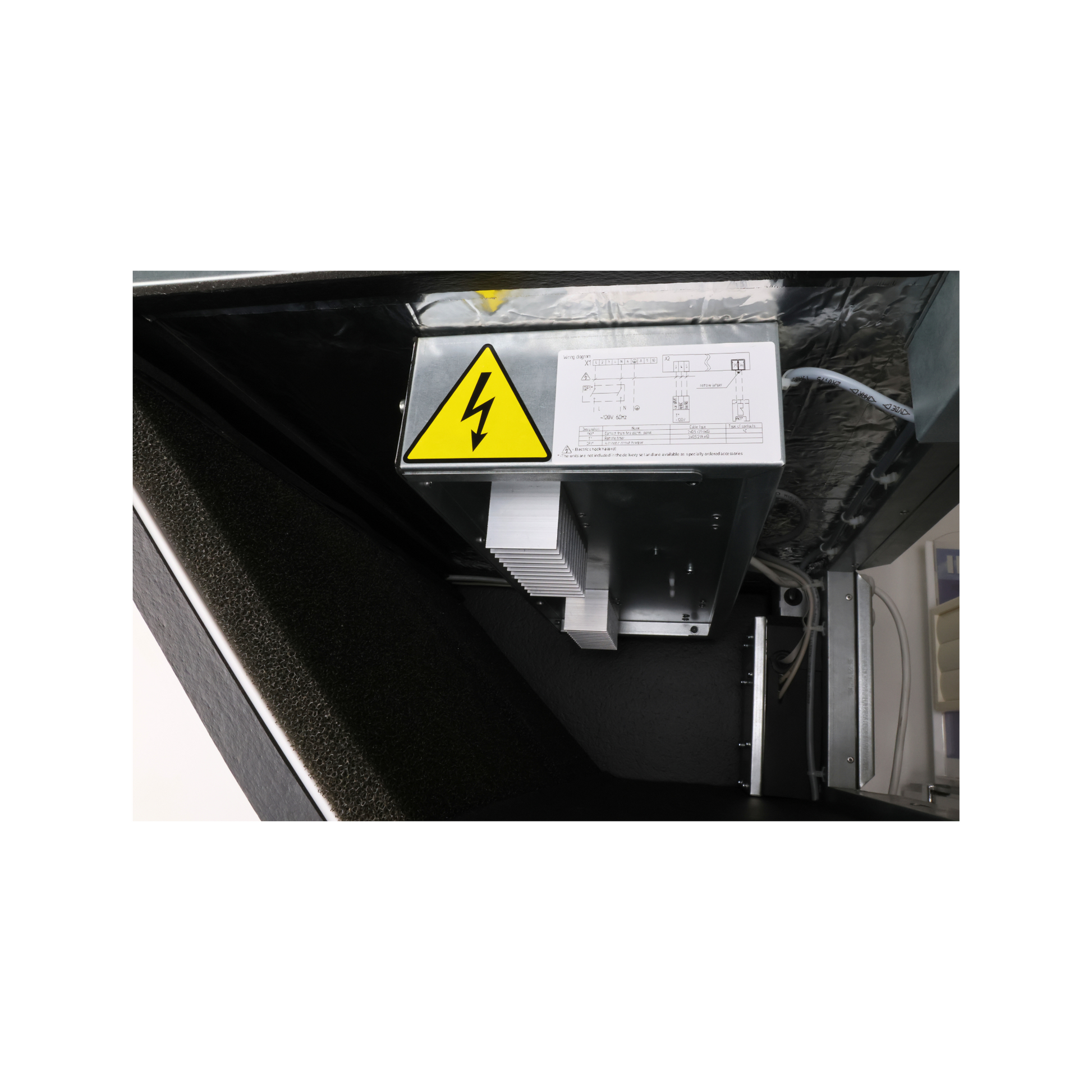

Additionally, our ventilators are equipped with built-in thermal overheating protection, ensuring safety and efficiency with automatic restart functionality. The electric motors and impellers are meticulously engineered and dynamically balanced to ensure smooth and reliable operation.
For outdoor installation use the optional roof accessory, allowing you to maximize the efficiency of your ERV in any environment.
Features
- Unique enthalpy heat exchanger
- MERV 6 supply + exhaust filters
- Up to 1785 CFM (ERV 25)
- Recovery efficiency up to 63%
- 8×14 up to 8x30 Duct sizing

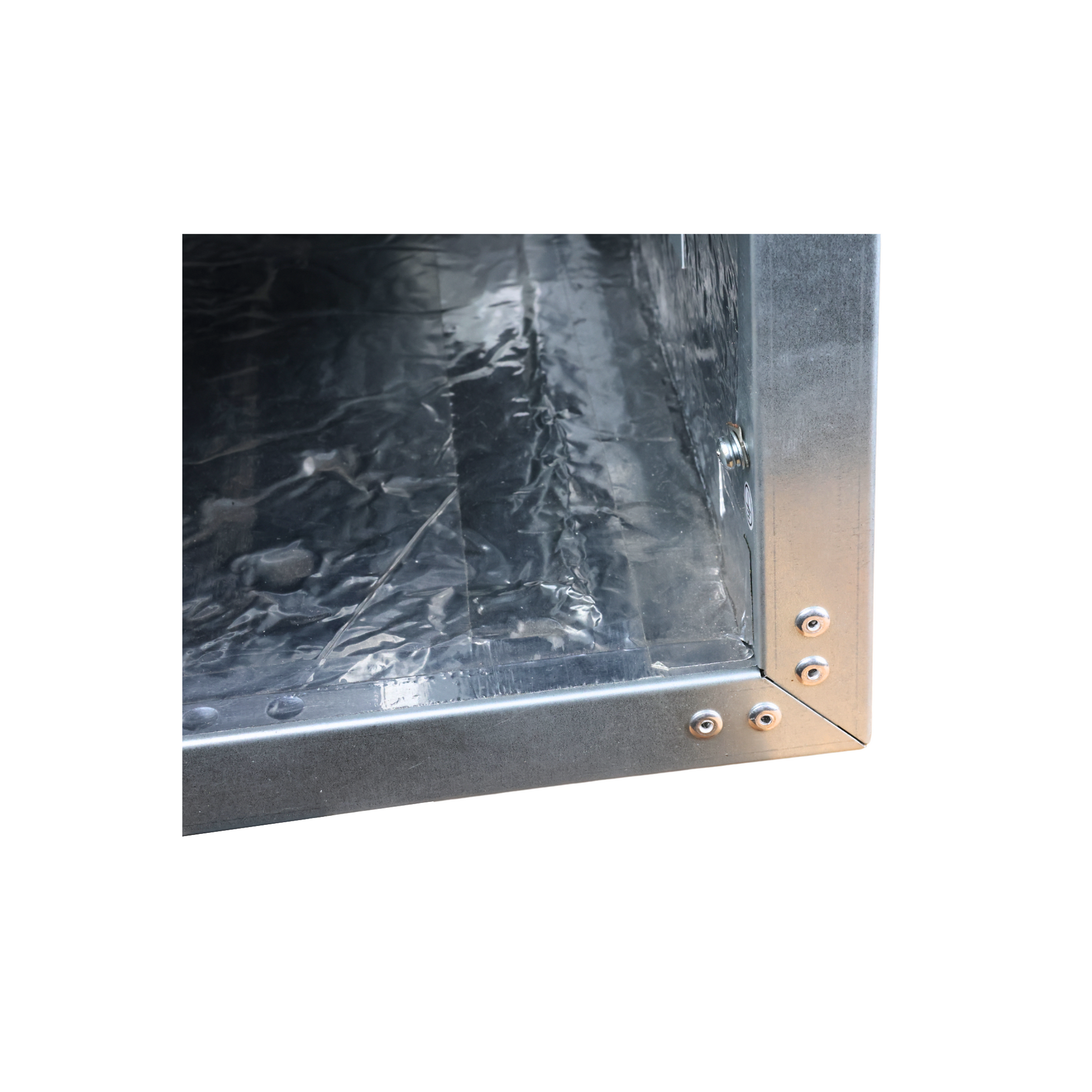

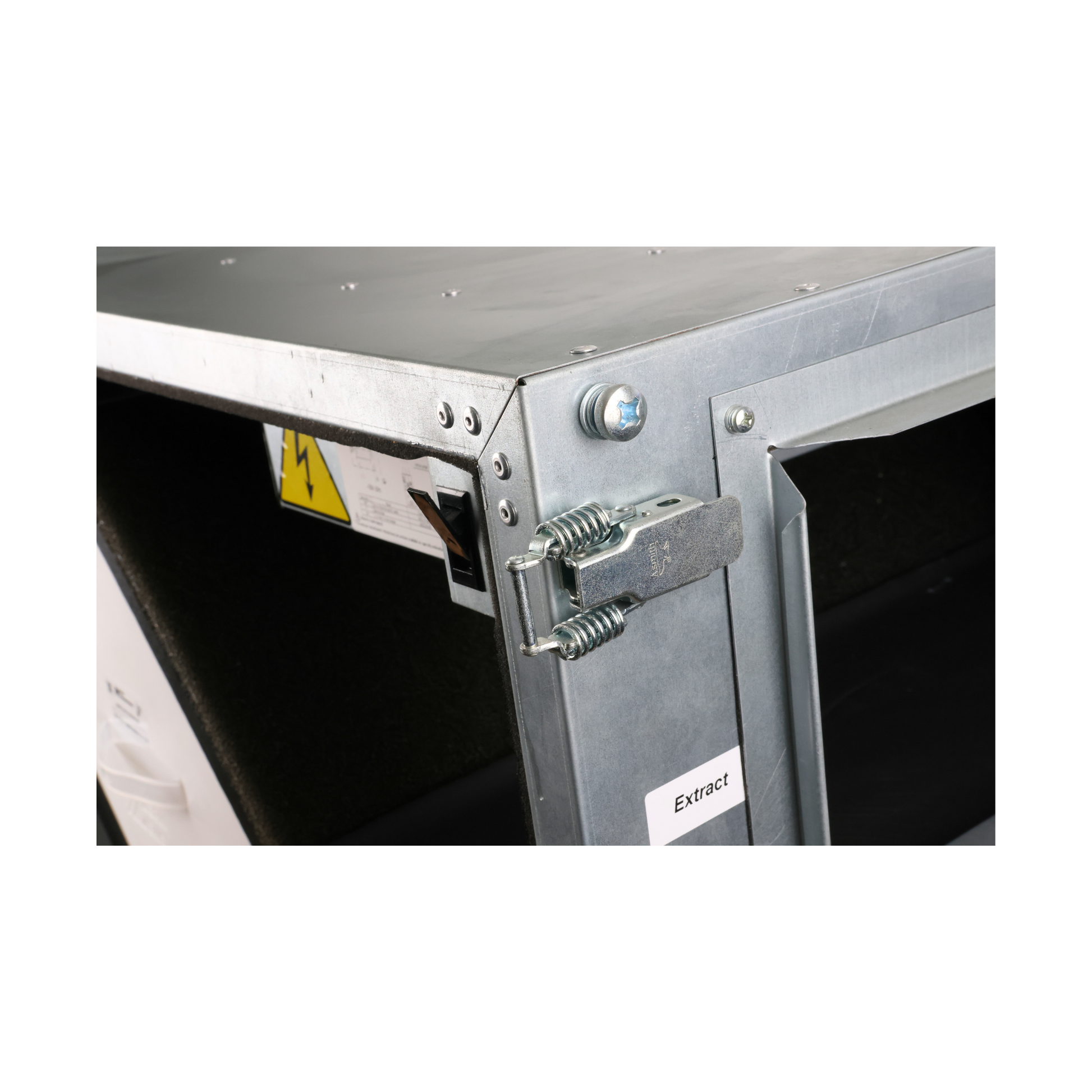

- 21 gauge galvanized steel case
- 10 year warranty on the core
Need assistance? Call us at 1-833-878-3687, Mon-Fri, 9 am to 5 pm (EST).
Details
Vents Airlite ERV 5/8/13/17/25 | |||||

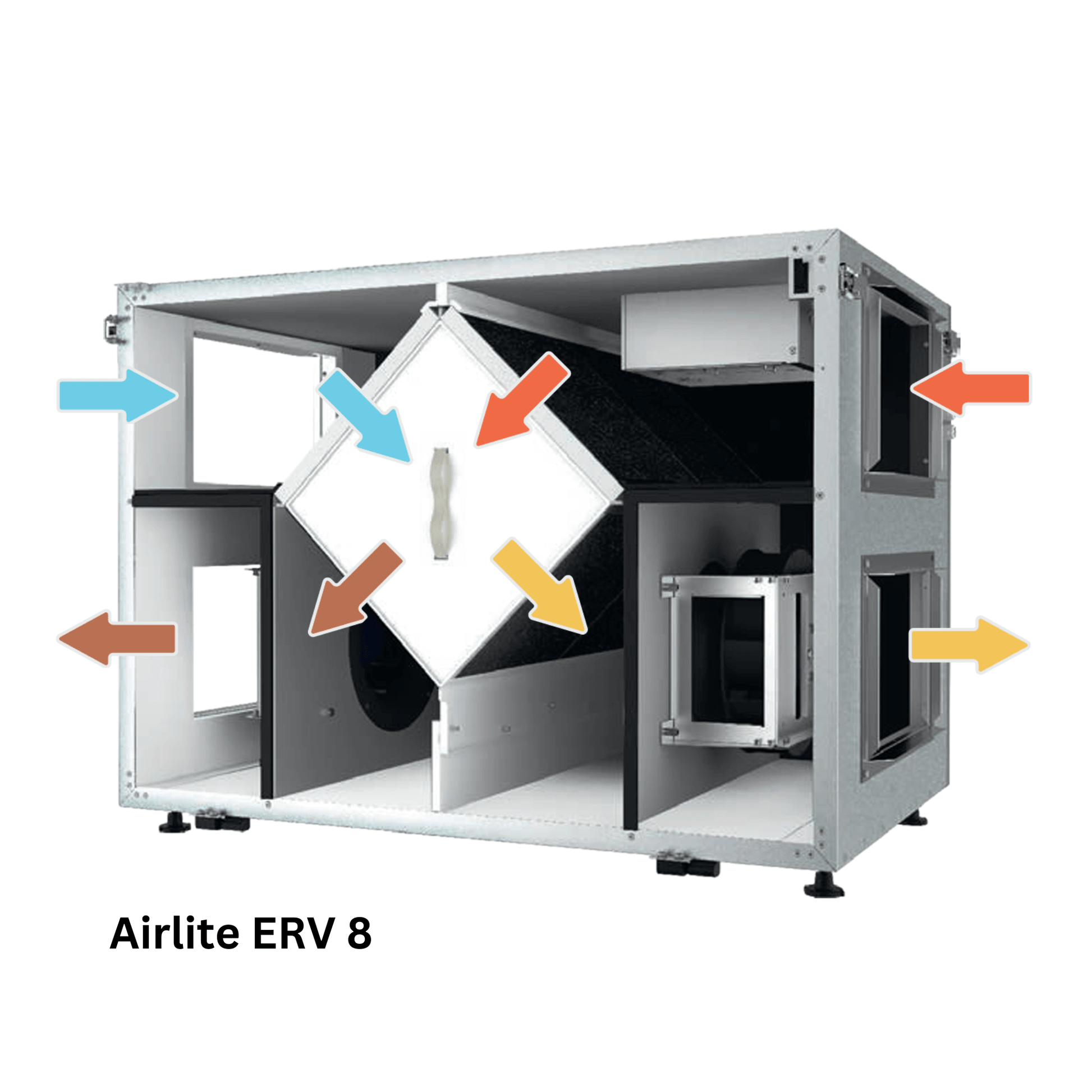

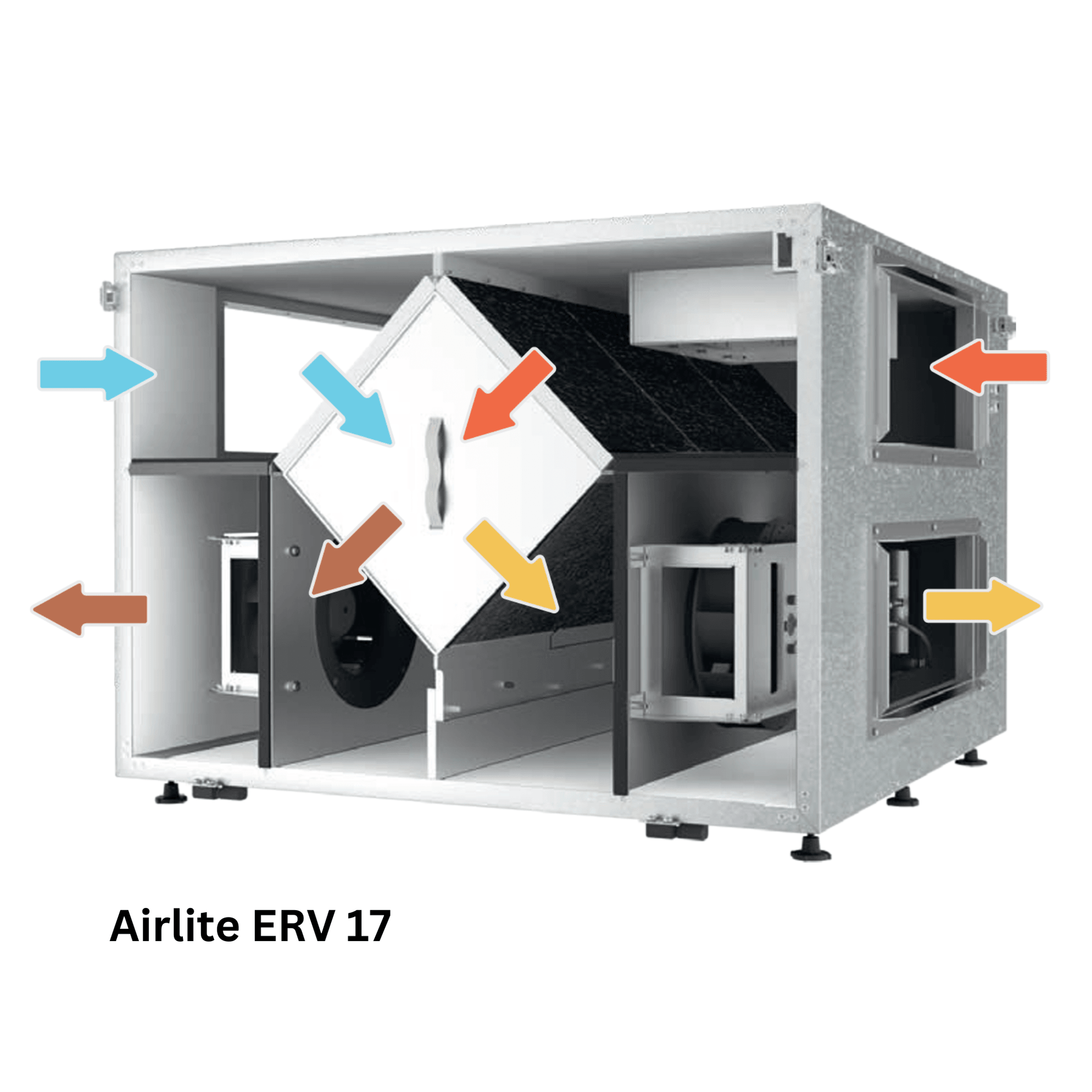

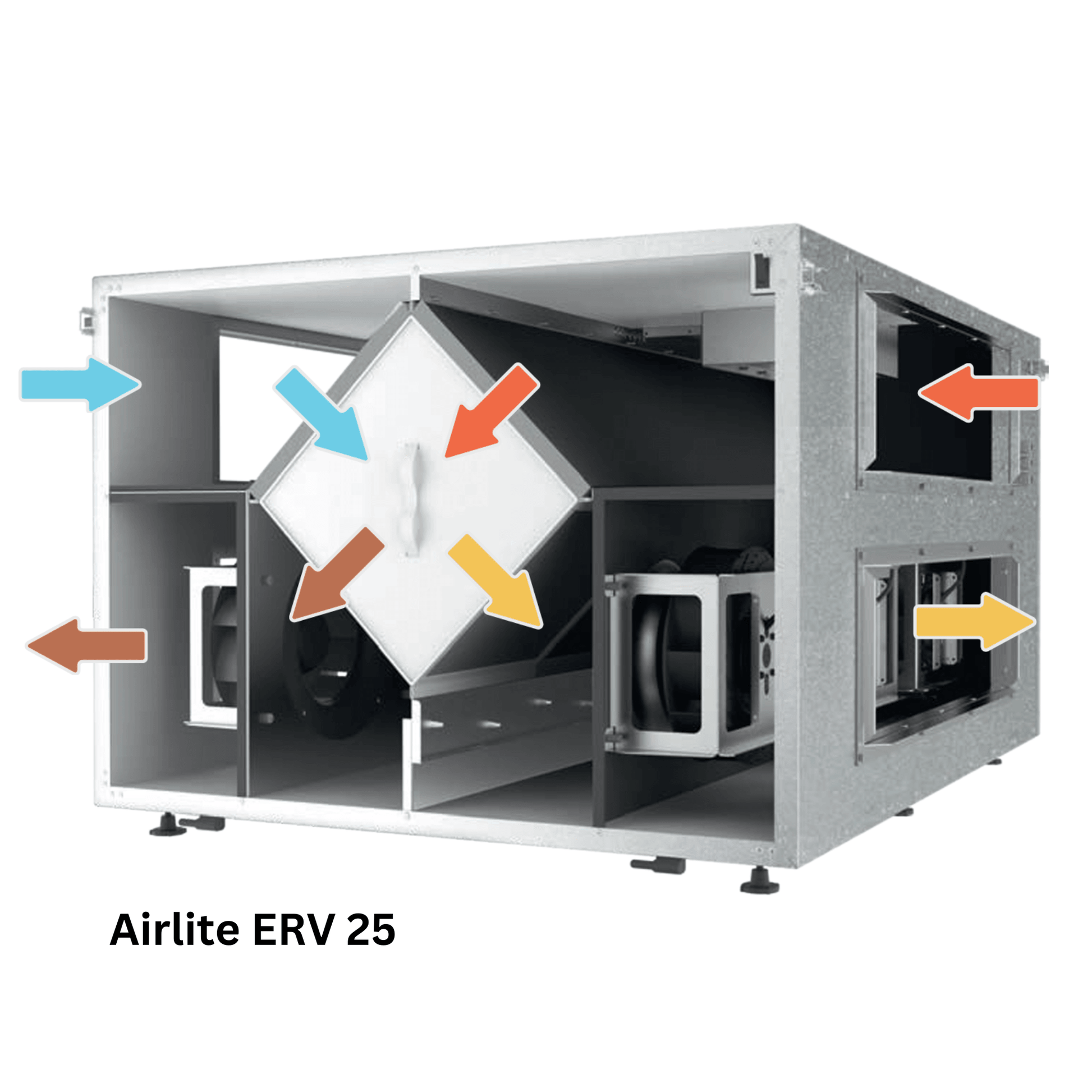

Model | ERV 5 | ERV 8 | ERV 13 | ERV 17 | ERV 25 |
Maximum continuous air flow capacity (at 0.1 in. w.g.) | 350 CFM | 510 CFM | 700 CFM | 1135 CFM | 1785 CFM |
Voltage [V / 60 Hz] | 1 - 120 | 1 ~ 120 | 1 ~ 120 | 1 ~ 120 | 1 ~ 120 |
Unit power [W] | 460 W | 640W | 880W | 1330W | 2010W |
Unit current [A] | 3.8 | 5.4 | 9.8 | 11.1 | 16.9 |
Transported air temperature [F] | -35 up to +140 | -35 up to +140 | -35 up to +140 | -35 up to +140 | -35 up to +140 |
Outer skin casing material | 21 gauge galvanized steel | 21 gauge galvanized steel | 21 gauge galvanized steel | 21 gauge galvanized steel | 21 gauge galvanized steel |
Connected air duct size [in] | 8×14 | 8×14 | 8×20 | 8×20 | 8×30 |
Sensible recovery efficiency at 32°F (0`C) | up to 66% | up to 54% | up to 63% | up to 56% | up to 55% |
MERV6 supply/exhaust filters | Yes | ||||
Defrost System | Built temp sensor | ||||

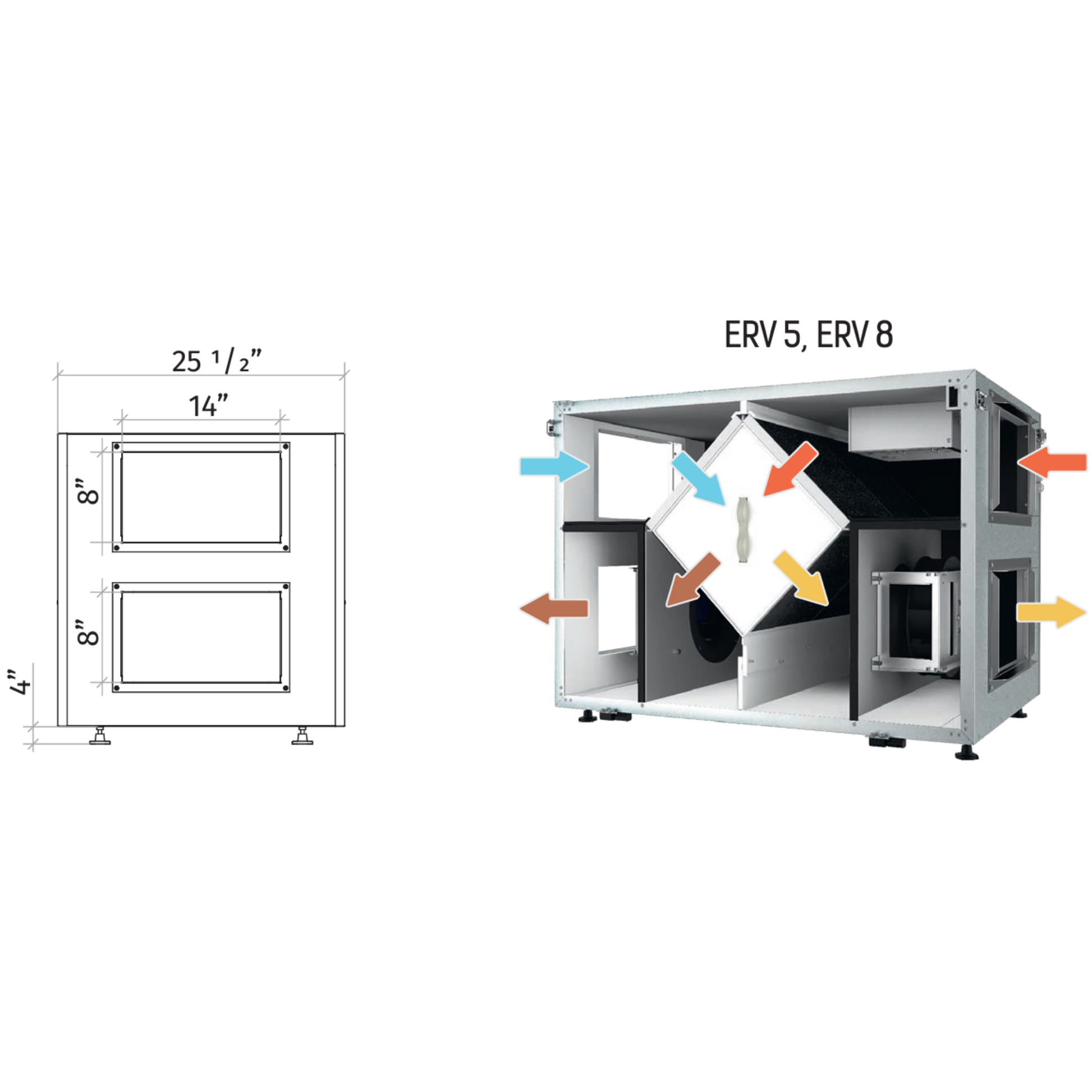

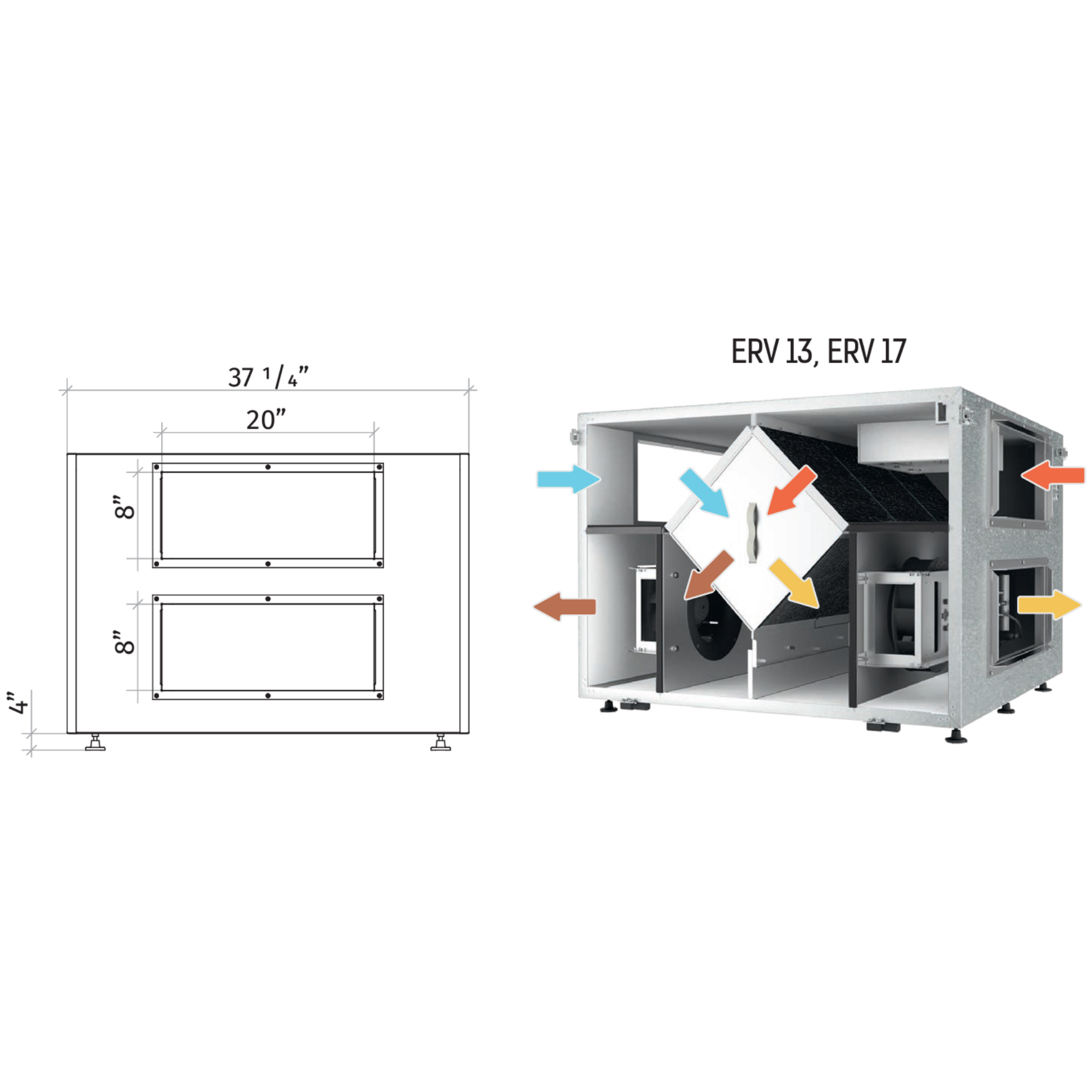

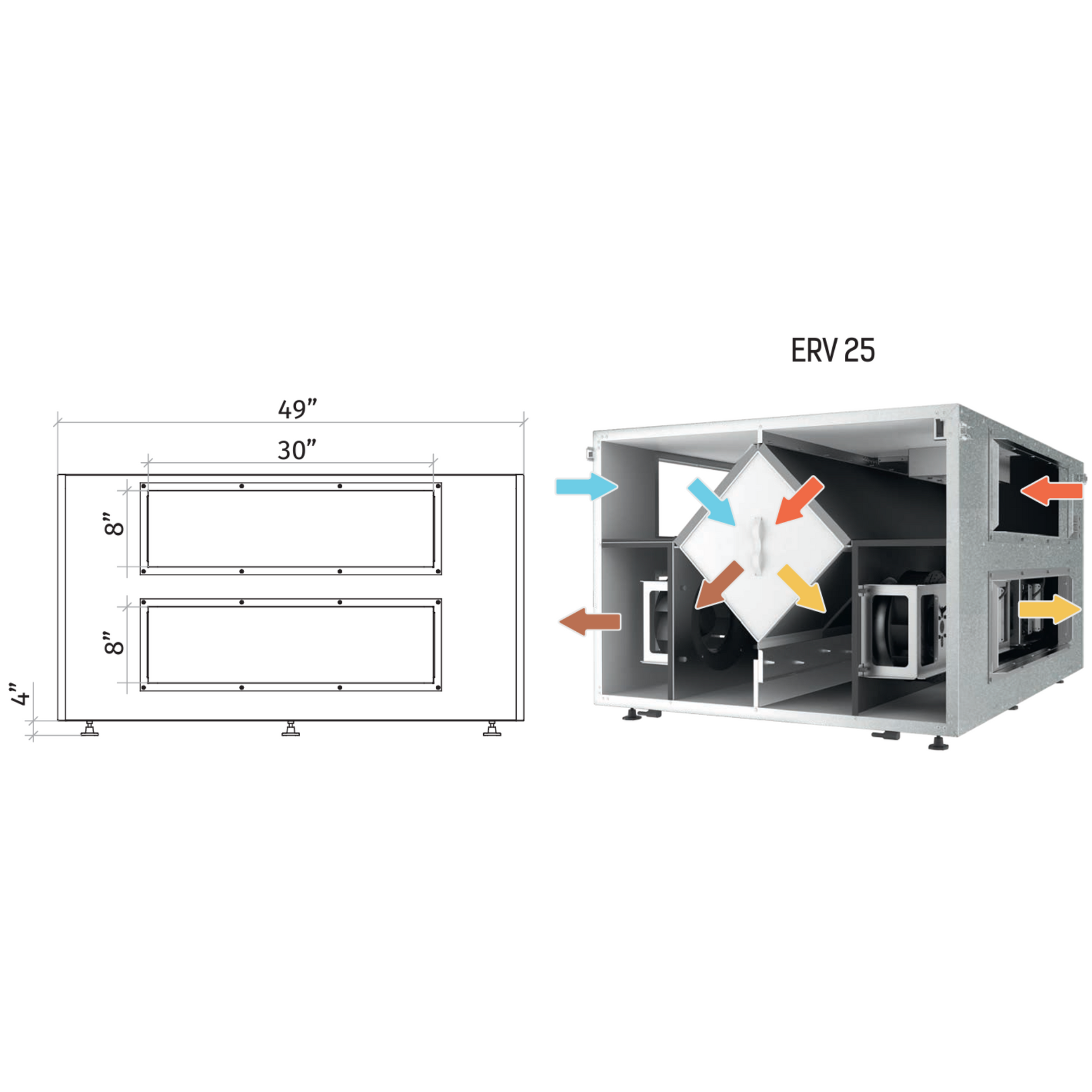

Dimensions (H x W x D) | 25 ¹⁄2”x26”x36 ¹⁄2” | 25 ¹⁄2”x26”x36 ¹⁄2” | 37 ¹⁄4”x26”x36 ¹⁄2” | 37 ¹⁄4”x26”x36 ¹⁄2” | 49”x26"x36 ¹⁄2” |
