Vents Airlite Series Commercial HRVs
Vents Airlite Series Commercial HRVs
Low stock
Free Shipping on all orders. You're shopping manufacturer direct with Vents-US.
The Airlite HRV heat exchangers are expertly engineered from high-quality polystyrene, ensuring durability and top-notch heat recovery performance. They are also equipped with stainless steel drain pans (for condensate)on both the inlet and outlet sides for added convenience.

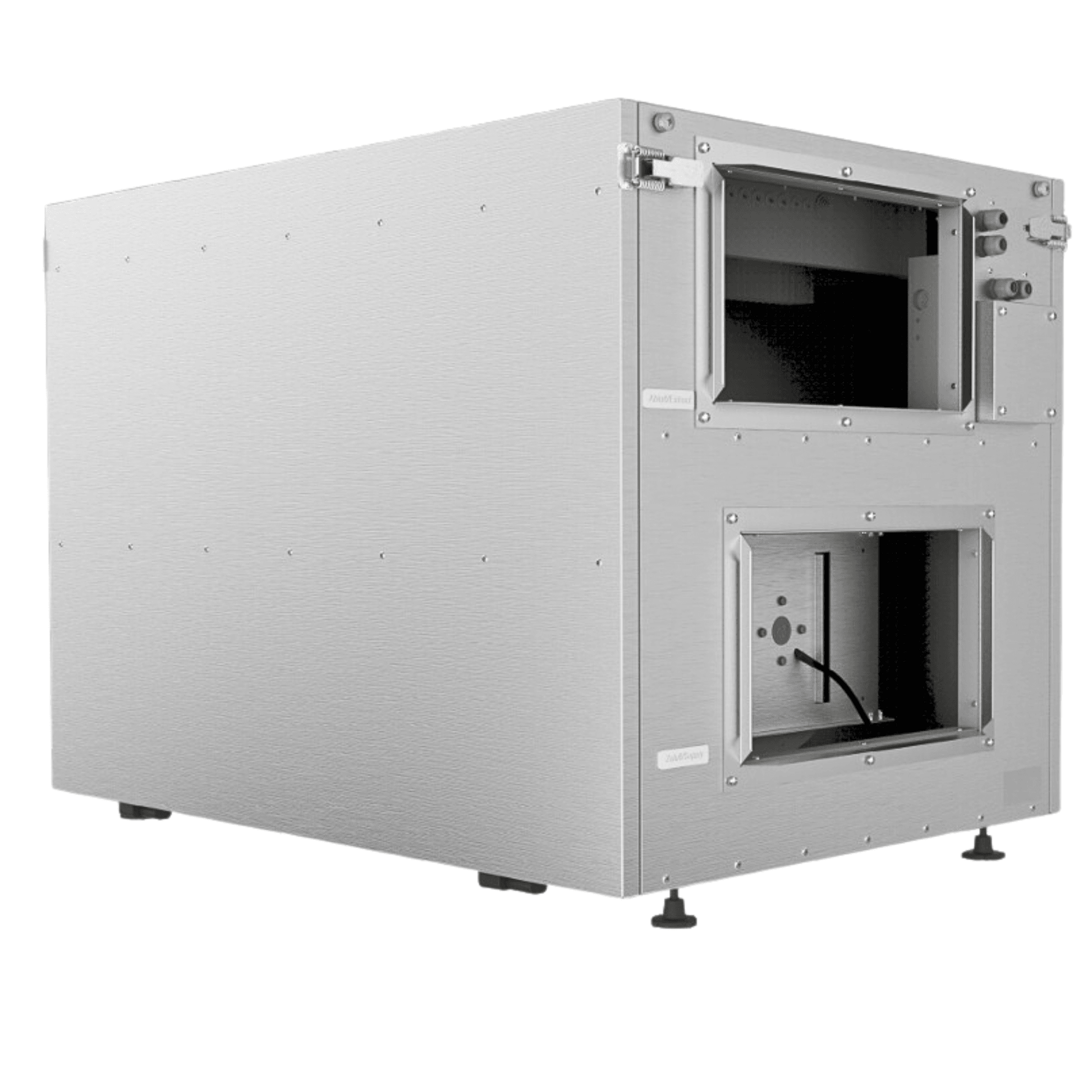

The steel casing is shielded by a high-quality multilayer aluminum and zinc alloy, providing superior corrosion resistance, making it ideal for a variety of environments.
Our casing includes a built-in switch that deactivates the ventilator when the service panel is opened, ensuring peace of mind during maintenance.
Opt for outdoor installation with the optional roof accessory, allowing you to maximize the efficiency of your heat recovery system in any environment.

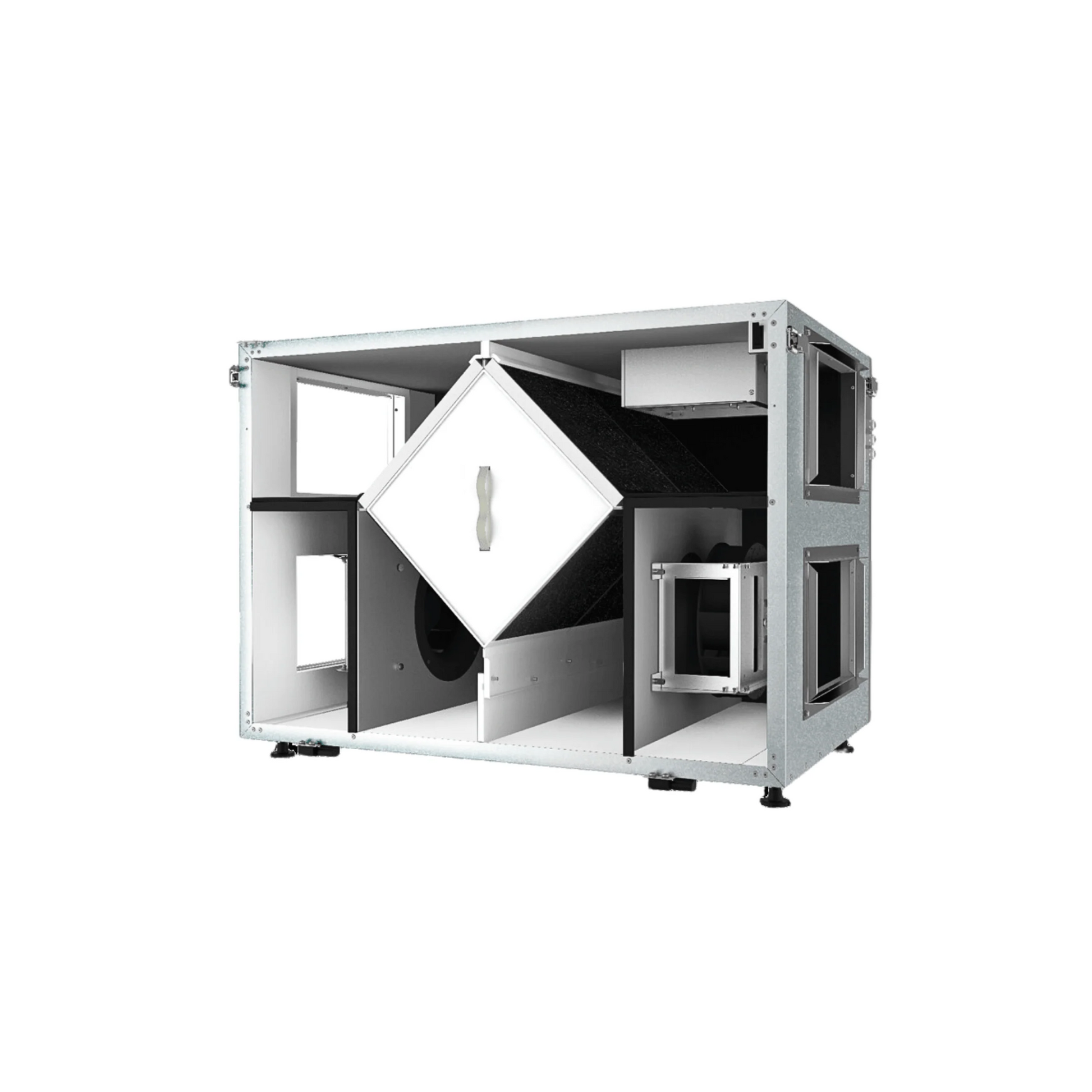

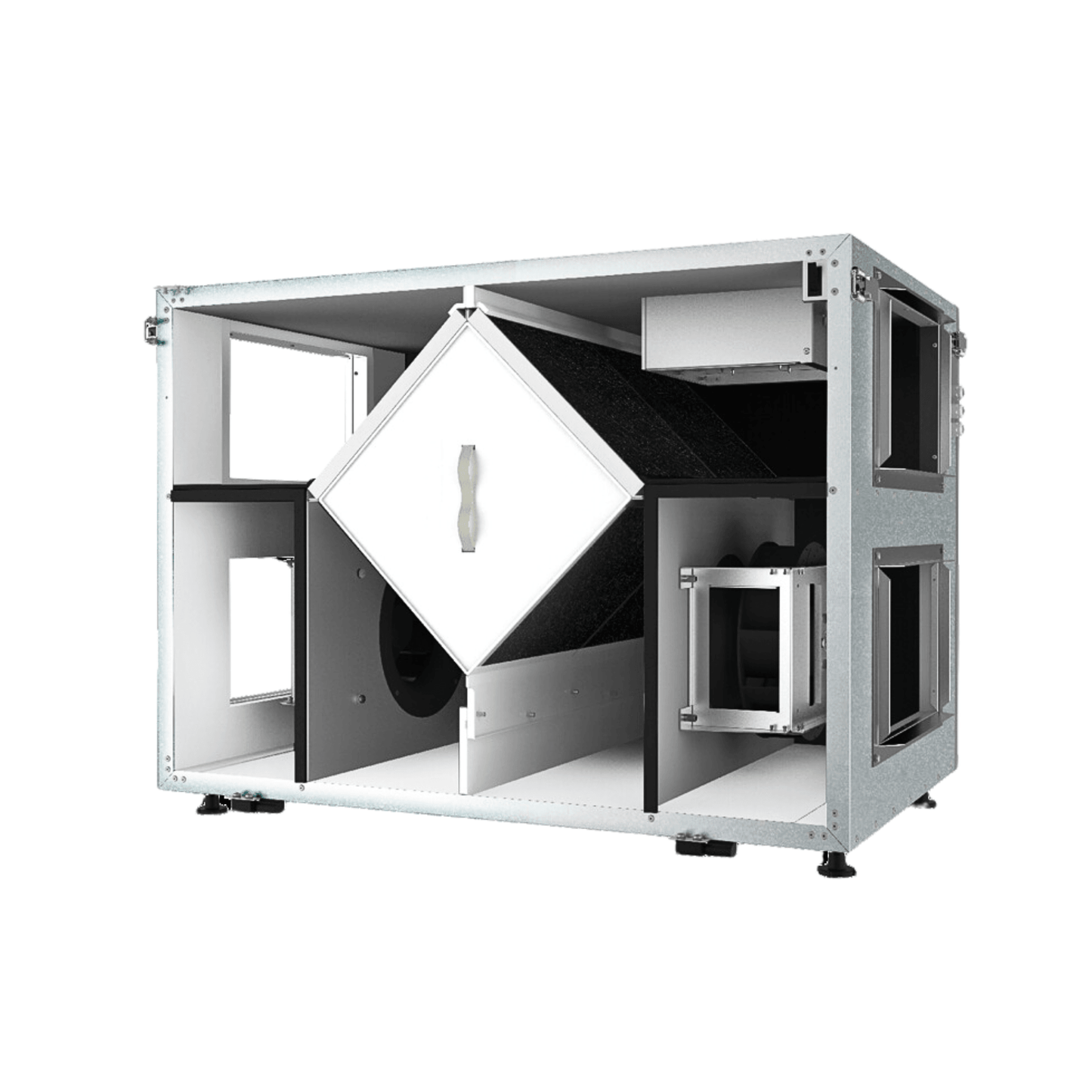

Revolutionize your heat recovery process with our state-of-the-art plate heat exchanger. Efficiency, durability, and versatility – all in one package.
Features
- Unique polystyrene heat exchanger
- MERV 6 supply + exhaust filters
- Up to 1785 CFM (HRV 25)
- Integrated automation and control system
- External control device connection
- Recovery efficiency up to 63%
- 8×14 up to 8x30 Duct sizing
- 21 gauge galvanized steel case
- 10 year warranty on core
Need assistance? Call us at 1-833-878-3687. Mon-Fri, 9 am to 5 pm (EST).
Details
Airlite HRV 8/13/17/25 | |||||

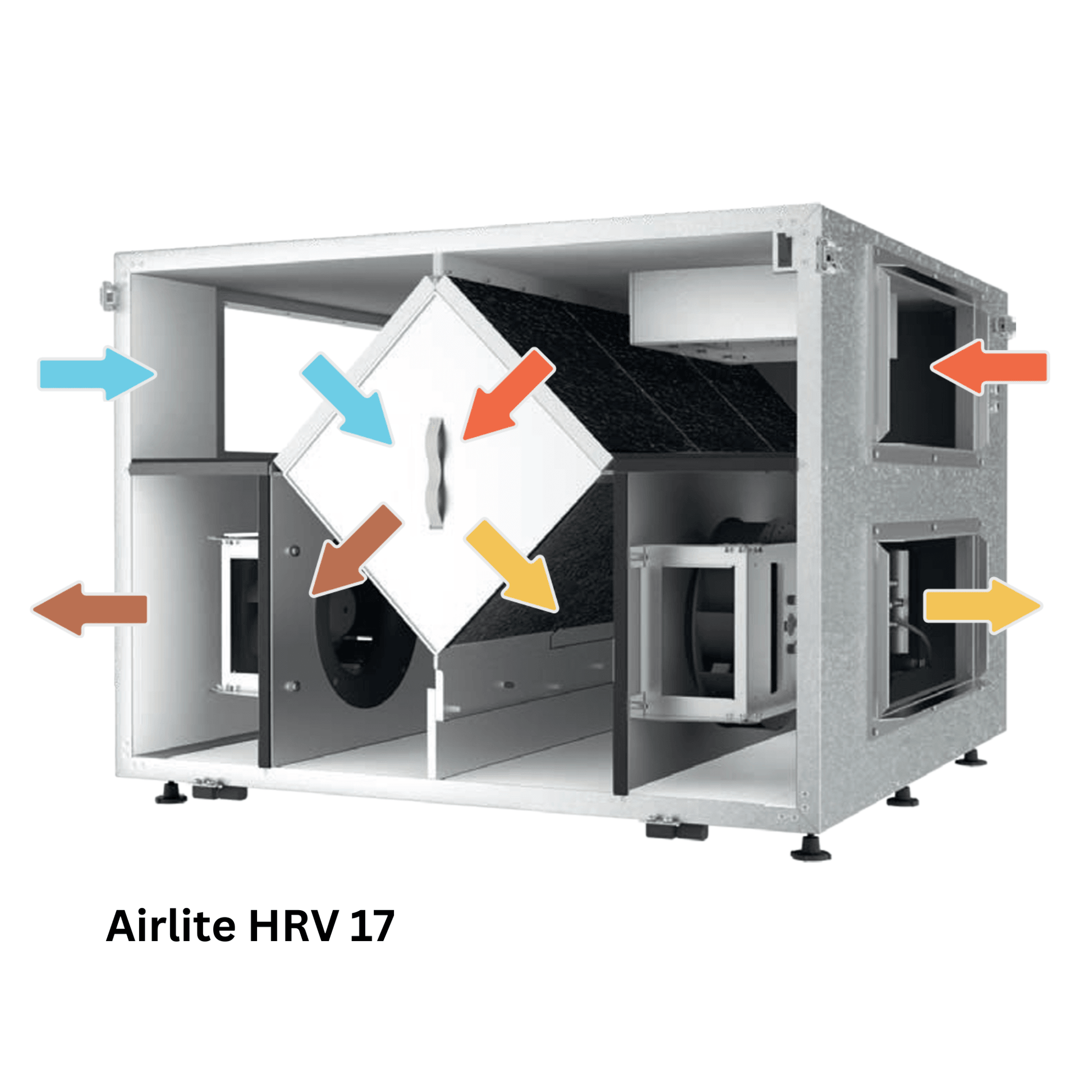

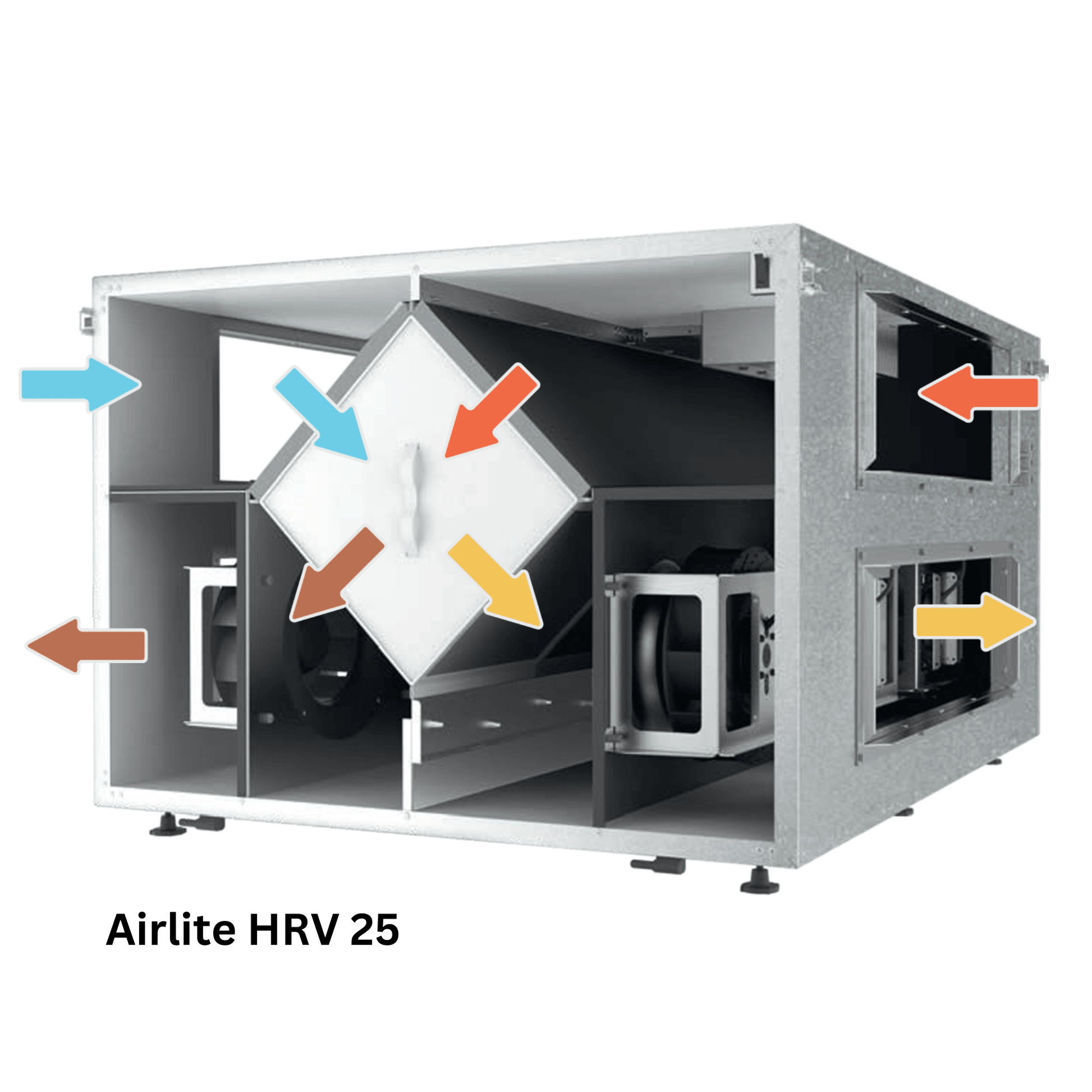

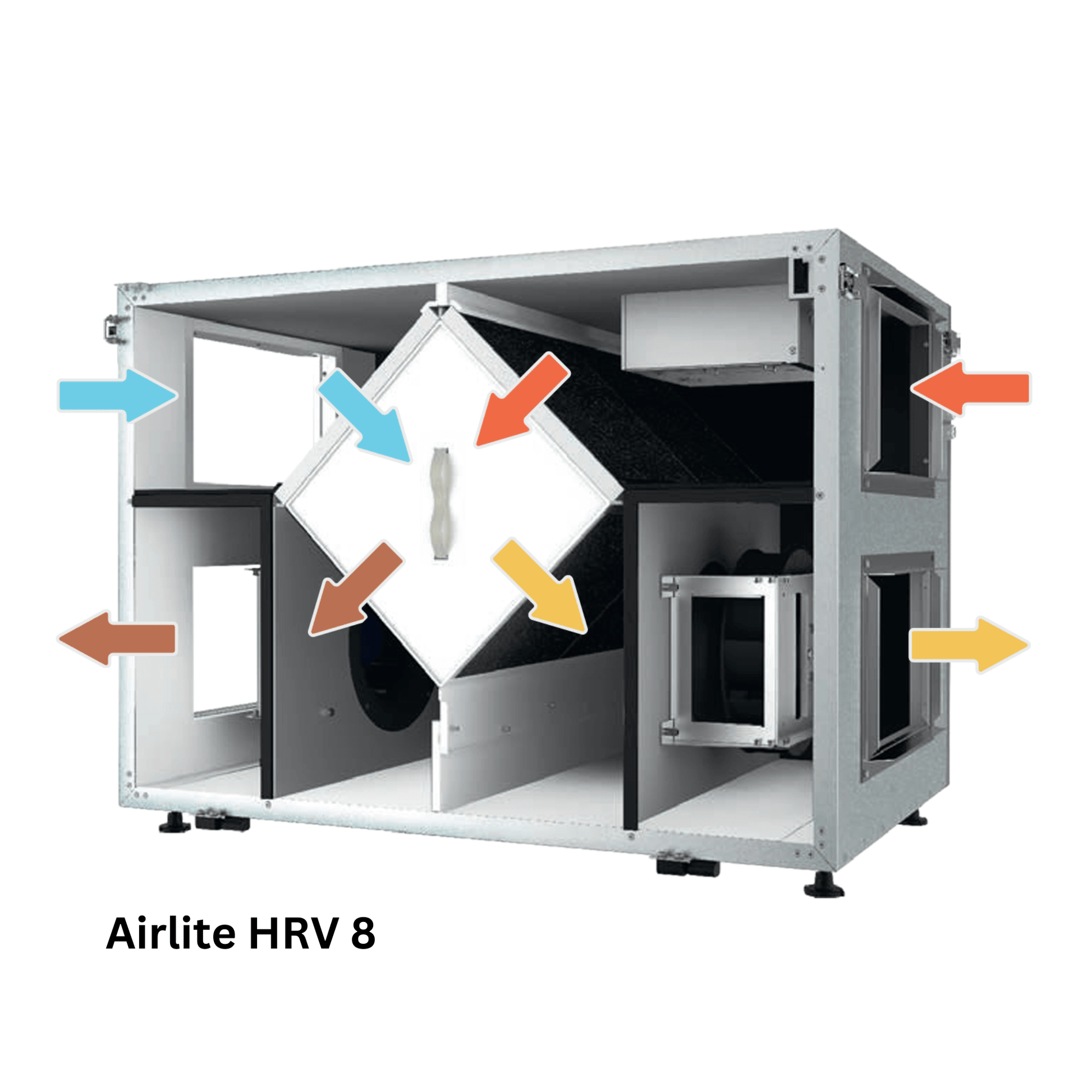

Model | HRV 5 | HRV 8 | HRV 13 | HRV 17 | HRV 25 |
Maximum continuous air flow capacity (at 0.1 in. w.g.) | 350 CFM | 510 CFM | 700 CFM | 1135 CFM | 1785 CFM |
Voltage [V / 60 Hz] | 1 ~ 120 | 1 ~ 120 | 1 ~ 120 | 1 ~ 120 | 1 ~ 120 |
Unit power [W] | 460W | 640W | 880W | 1330W | 2010W |
Unit current [A] | 3.8 | 5.4 | 9.8 | 11.1 | 16.9 |
Transported air temperature [F] | -35 up to +140 | -35 up to +140 | -35 up to +140 | -35 up to +140 | -35 up to +140 |
Outer skin casing material | 21 gauge galvanized steel | 21 gauge galvanized steel | 21 gauge galvanized steel | 21 gauge galvanized steel | 21 gauge galvanized steel |

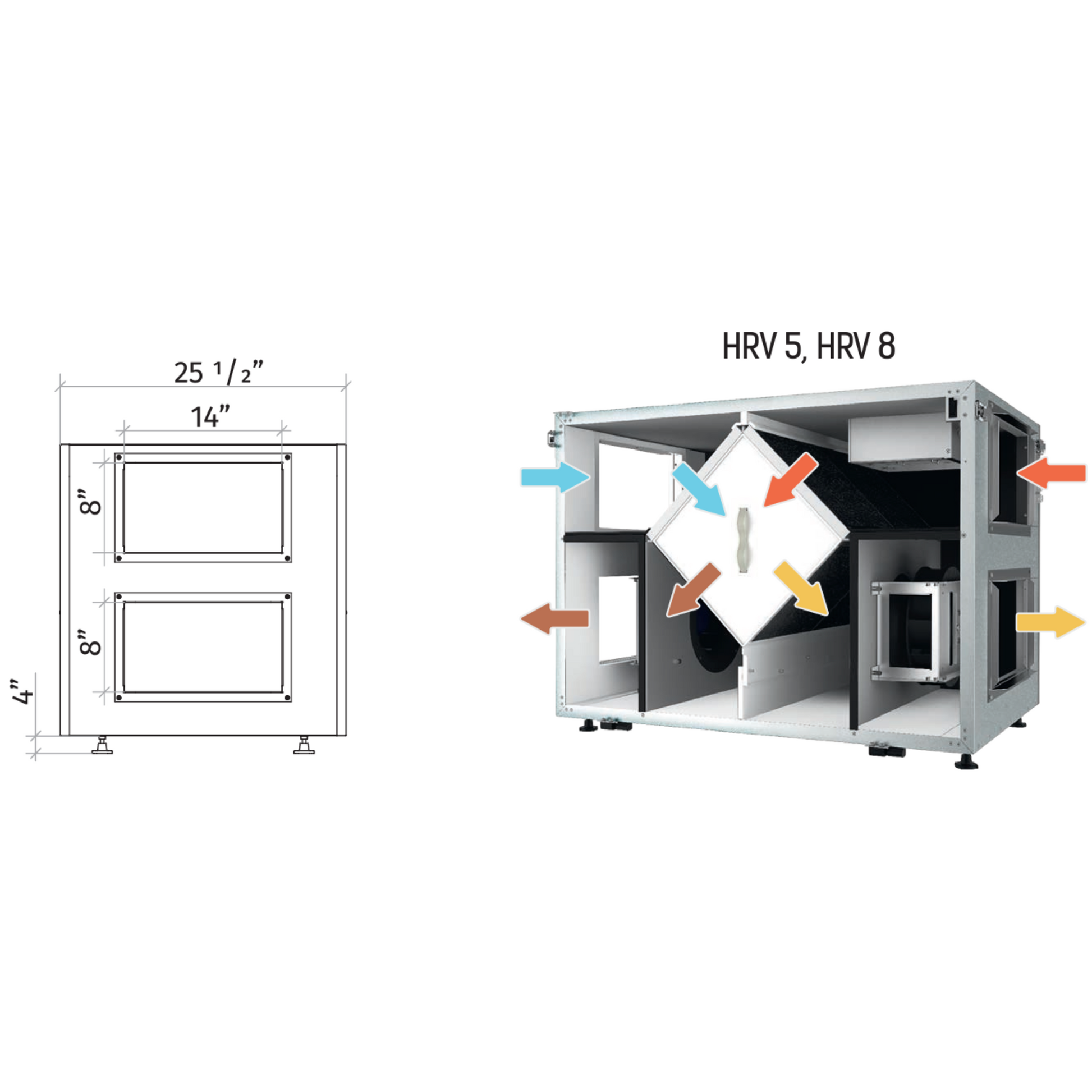

Connected air duct size [in] | 8×14 | 8×14 | 8×20 | 8×20 | 8×30 |
Sensible recovery efficiency at 32°F (0`C) | up to 66% | up to 54% | up to 63% | up to 56% | up to 55% |
MERV6 supply/exhaust filters | Yes | ||||
Defrost System | Built temp sensor | ||||

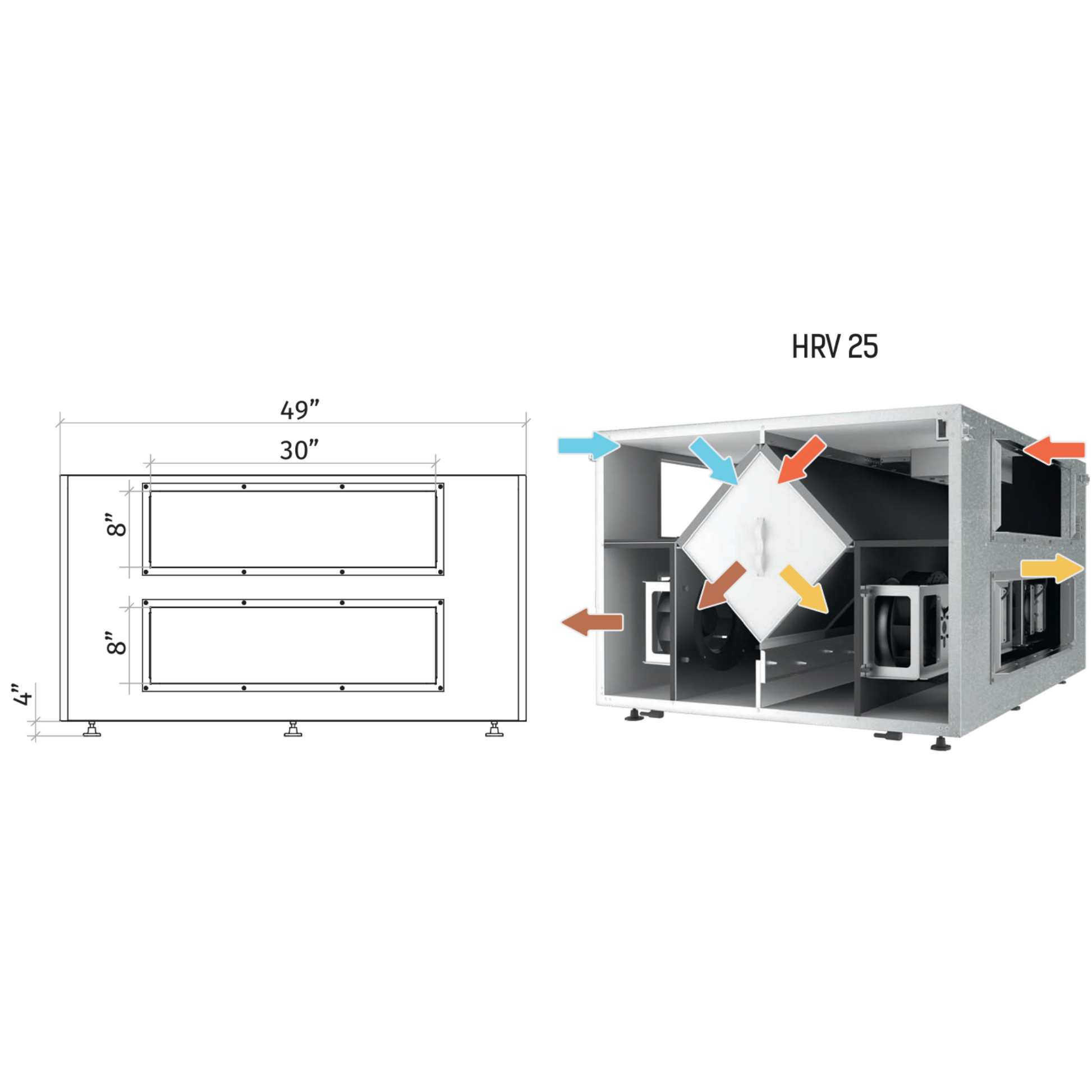

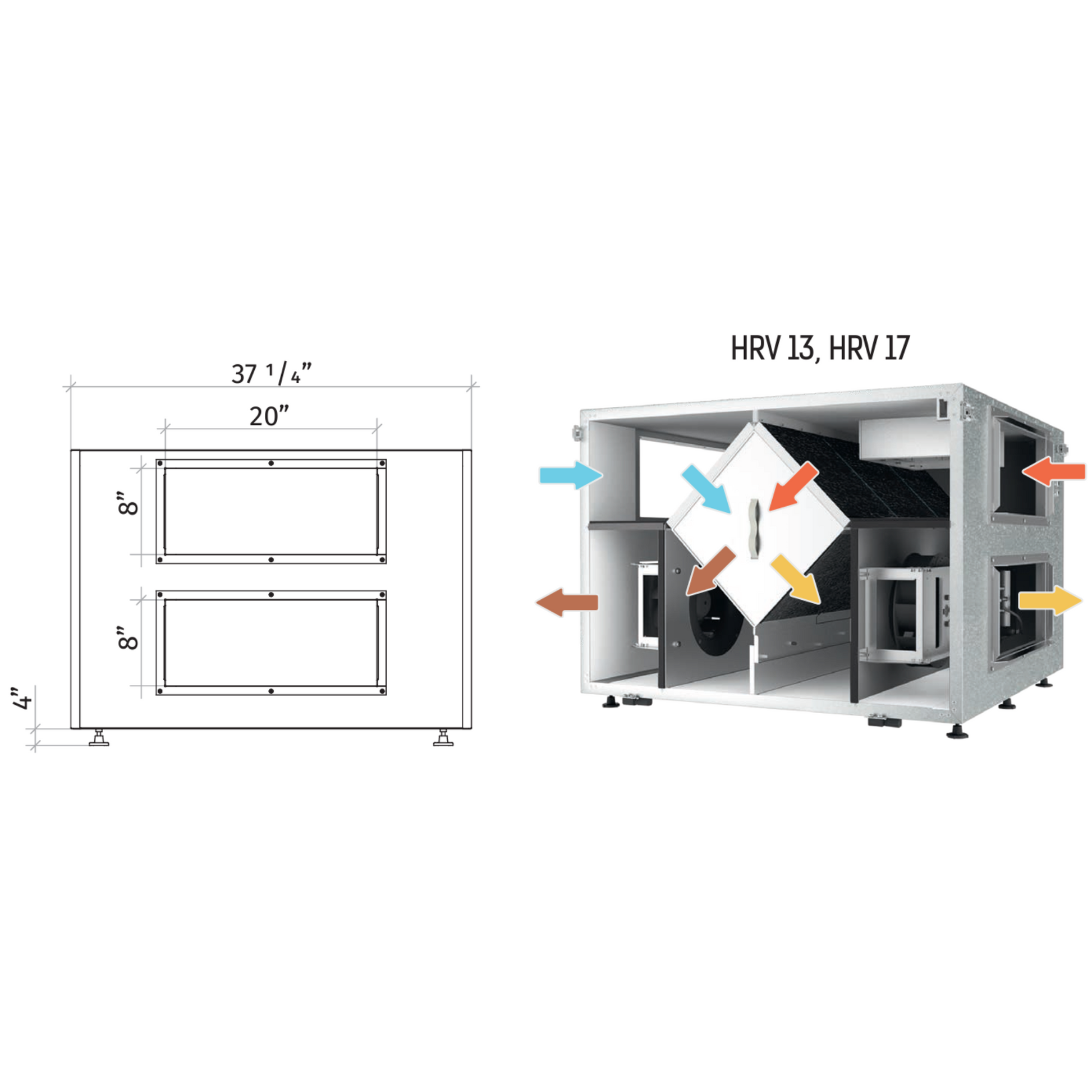

Dimensions (H x W x D) | 25 ¹⁄2”x26”x36 ¹⁄2” | 25 ¹⁄2”x26”x36 ¹⁄2” | 37 ¹⁄4”x26”x36 ¹⁄2” | 37 ¹⁄4”x26”x36 ¹⁄2” | 49”x26"x36 ¹⁄2” |
