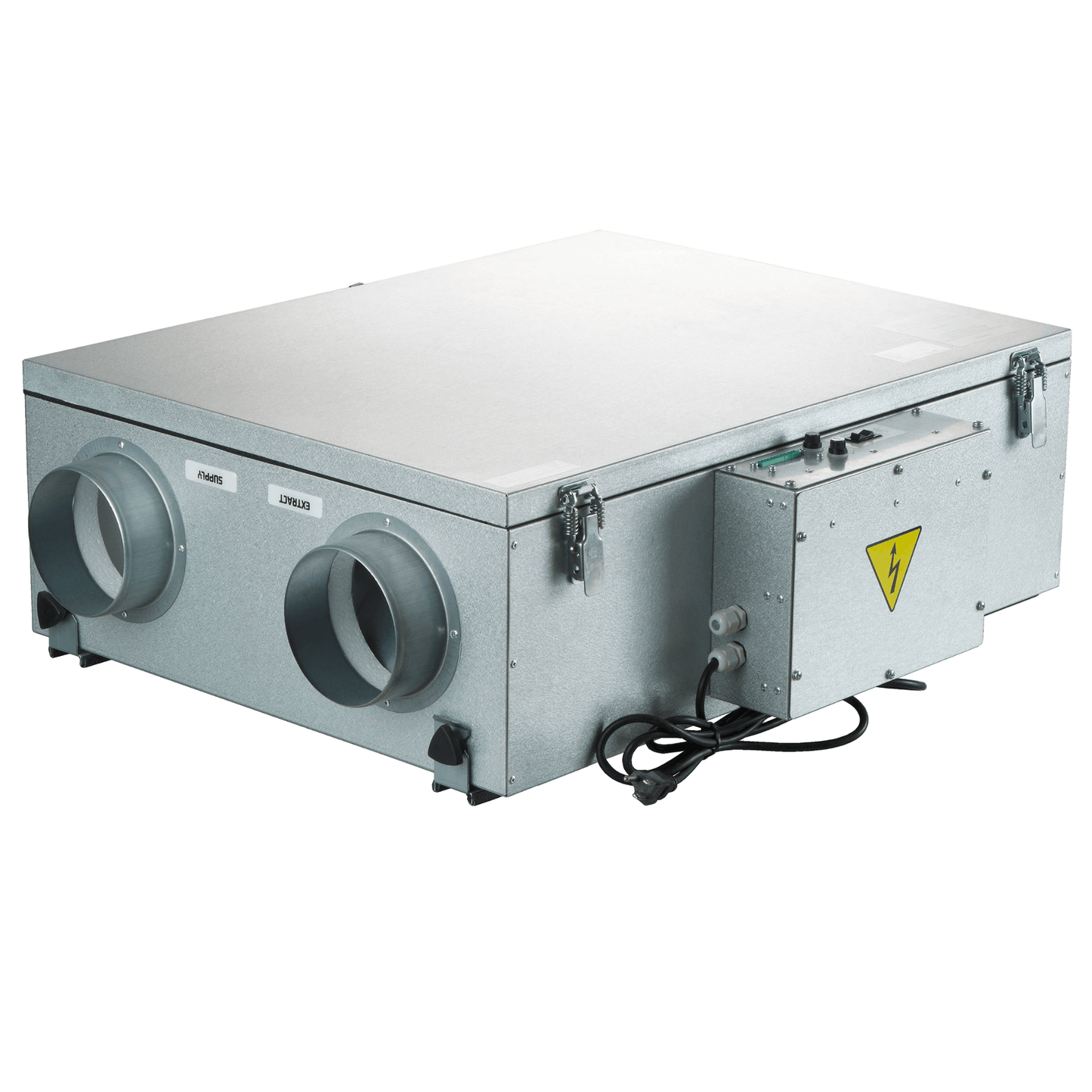

Vents Frigate 150 Series EC Motor Heat Recovery Ventilators

Vents Frigate 150 Series EC Motor Heat Recovery Ventilators

$1,342.00
$1,342.00
Sale Sold out
Free Shipping!

Low stock

Manufacturer Direct. Orders ship same day with free shipping included!

Model

The Frigate 150 EC HRV's are outfitted with highly efficient electronically commutated (EC) motors, boasting an external rotor and backward-curved blade impeller.

Our EC motors not only excel in delivering outstanding performance but also provide a versatile range of speed control options. In addition, both the electric motors and impellers undergo meticulous balancing to guarantee optimal operation. This makes our units an ideal choice for a variety of settings, including homes, apartments, cottages, and small businesses

Features

  • Polystyrene cross-flow recovery core
  • MERV 6 supply + exhaust filters
  • Up to 186 CFM
  • Recovery efficiency up to 69%
  • Fan Efficacy 2.56 CFM/W
  • Sound level - 2.1 sones
  • 5" Duct diameter
  • Slim casing - 9 5/8"
  • 10 year warranty on the core



Need assistance? Call us at 1-833-878-3687, Mon-Fri, 9 am to 5 pm (EST).

Details

Frigate 150 EC Series HRV


 150 EC150R EC150CF EC
Maximum continuous air flow capacity (at 0.1 in. w.g.)186 CFM186 CFM186 CFM
Sensible recovery efficiency at 32°F (0`C)69%  69%  69%
MERV6 supply/exhaust filtersYesYesYes
Sound level2.1 Sones
Power consumption186 W186 W186 W
Fan Efficacy2.56 CFM/W
Duct diameters5 inches
Dimensions (H x W x D)9 5/8”x 25 1/8” x 27 3/4”

Frigate EC Motor Model Comparison

Frigate EC Model80 EC80 R EC120EC120 R EC120 ERV EC 120 ERV REC150EC HRV150 R EC HRVERV 150 ECERV 150 R EC
Maximum continuous air flow capacity (at 0.1 in. w.g.)81 CFM189 CFM161 CFM150 CFM186 CFM181 CFM
Sensible recovery efficiency at 32°F (0`C)73%62%71%72%69%73%
Apparent Sensible Effectiveness at 32°f (0`C)82%69%73%74%78%82%
MERV6 supply/exhaust filtersYes - All Models - Washable and replaceable
Sound level1.4 Sones1.9 Sones1.5 Sones2.1 Sones1.9 Sones
Fan efficacy1.72 CFM/W2.86 CFM/W2.78 CFM/W2.83 CFM/W2.56 CFM/W
Power consumption61 W204 W175 W186 W186 W
Recovery coreEnthalpyPolystyrene cross-flowEnthalpyPolystyrene cross-flowEnthalpy
Duct diameters5" Duct diameter
Dimensions (H x W x D)9 1/8”x 20 1/8” x 21 1/8”9 5/8”x 23 7/8” x 26 1/2”9 5/8”x 25 1/8” x 27 3/4”
Fan defrostYes Yes Yes Yes Yes
Recirculation Yes Yes Yes Yes Yes

Downloads

Frigate 150/CF EC specs

Frigate 150R EC specs

Frigate brochure

Frigate EC series Install

Frigate EC User Manual

Choosing the right Frigate/Brig for your home

Frigate/Brig Model Max CFMRecommended House Size
Series 80 EC ERV 93up to 1900 sq ft
Series 120 EC HRV127   up to 2700 sq ft
Series 150 EC HRV 178 up to 3700 sq ft
Brig 200 HRV 213 up to 4500 sq ft
Brig 300 HRV  257   up to 5200 sq ft

based on a dwelling with 9' ceilings. Check with your HVAC technician/installer for the most accurate data.

* Max CFM values can vary slightly between the ERV or HRV version in that series.



Download infographic - Vents CFM calculator

Why you need a Frigate ERV or HRV
