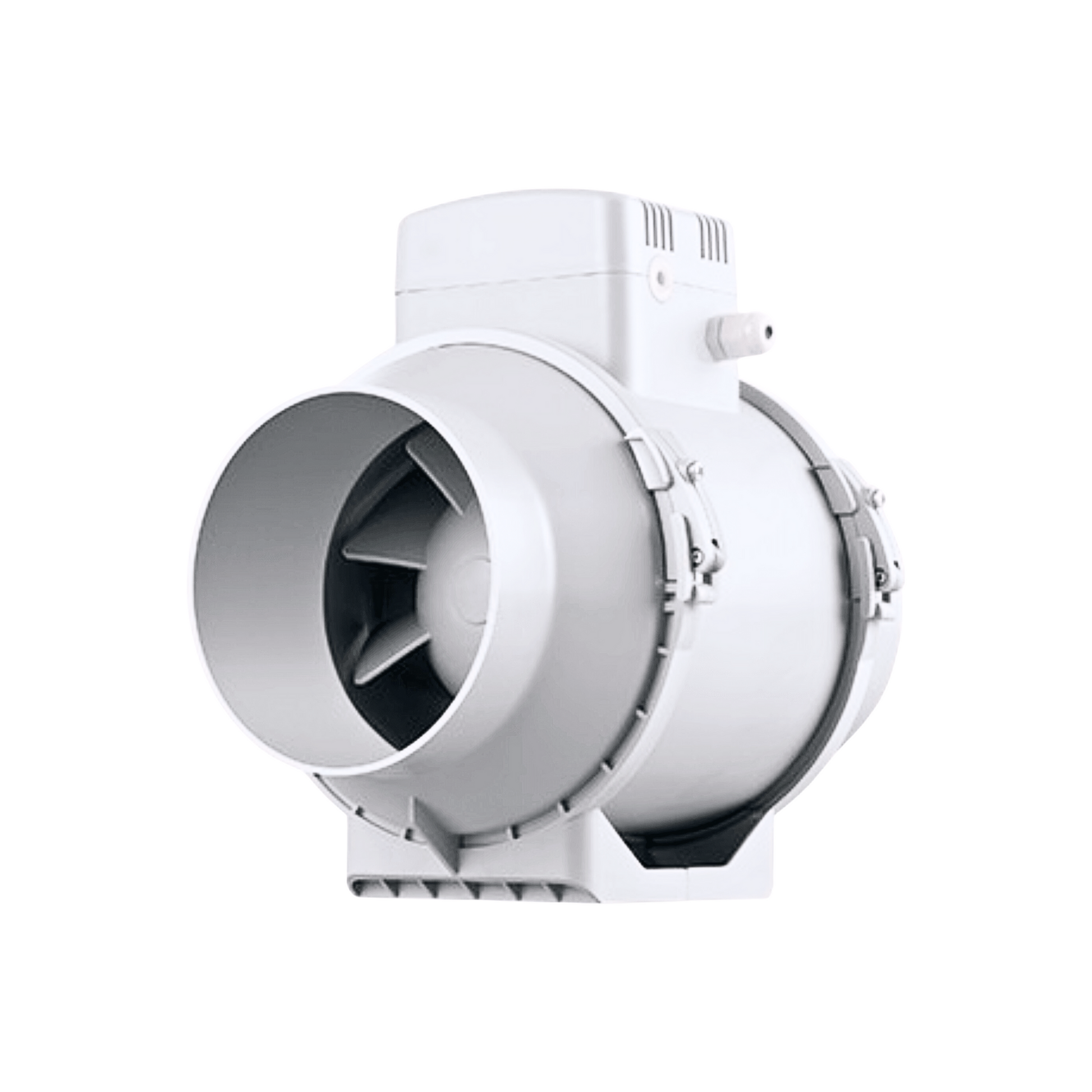

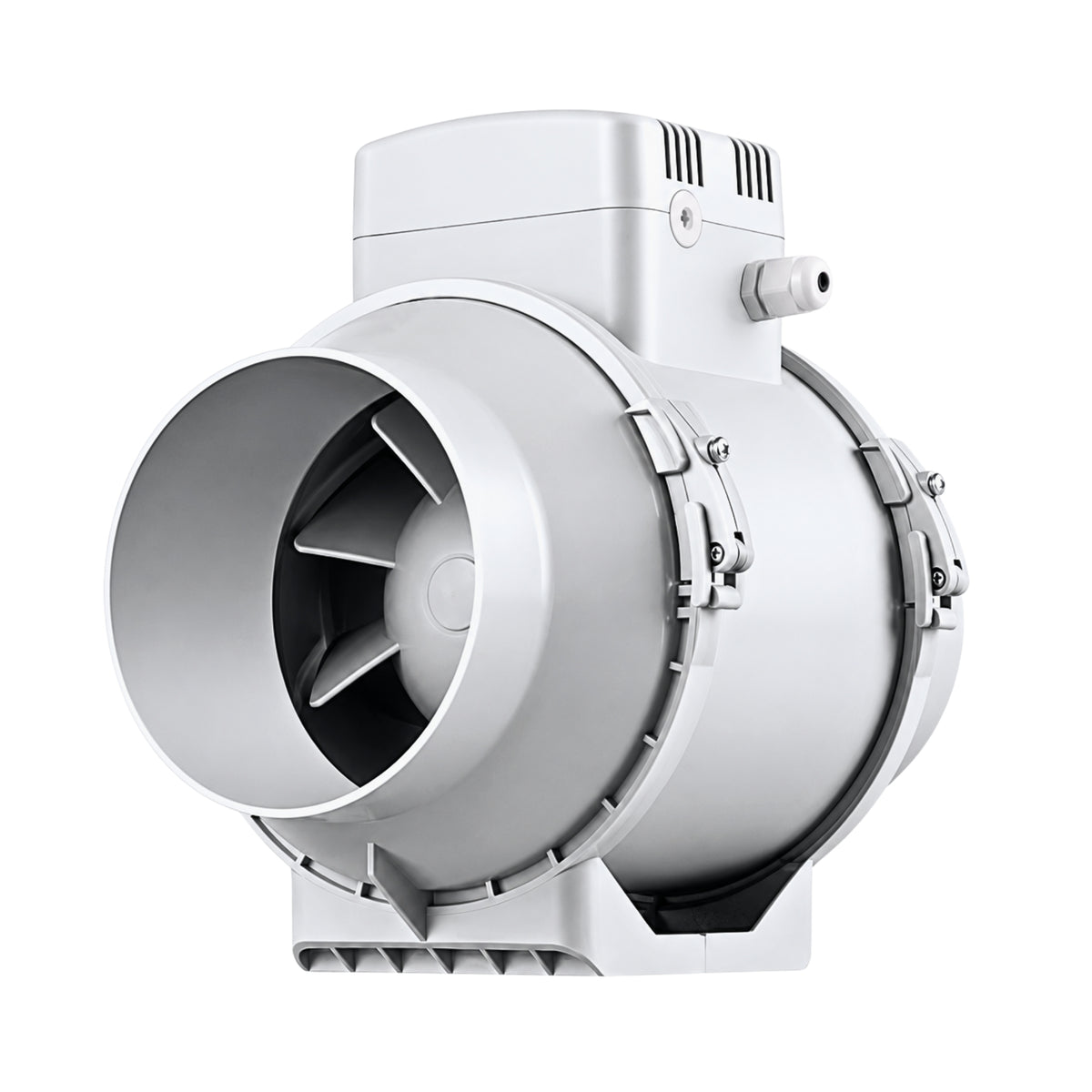

Vents Turbo Tube EC Motor Series Inline Fans
Vents Turbo Tube EC Motor Series Inline Fans
In stock
Free Shipping on all orders. You're shopping manufacturer direct with Vents-US.
Couldn't load pickup availability
Utilizing highly efficient electronically commutated direct current (EC) motors in conjunction with mixed-flow impellers, the Turbo Tube EC Motor series represents the cutting-edge solution for energy conservation. EC motors offer remarkable energy savings, with a power consumption that is 35% lower than that of standard motors at the same time delivering outstanding aerodynamic performance with minimal noise.
Our EC motors also offer a fully adjustable speed range.and are equipped with ball bearings designed to ensure a minimum operating lifespan of 40,000 hours. Ideal solution for Bathrooms, Kitchens, Apartments, Restaurants, Manufacturing facilities and much more.
Looking to buy in larger quantities? Feel free to give us a call or drop us an email, and we'll be happy to chat about some great deals for your project.
Features:
- 4"- 10" Duct sizes

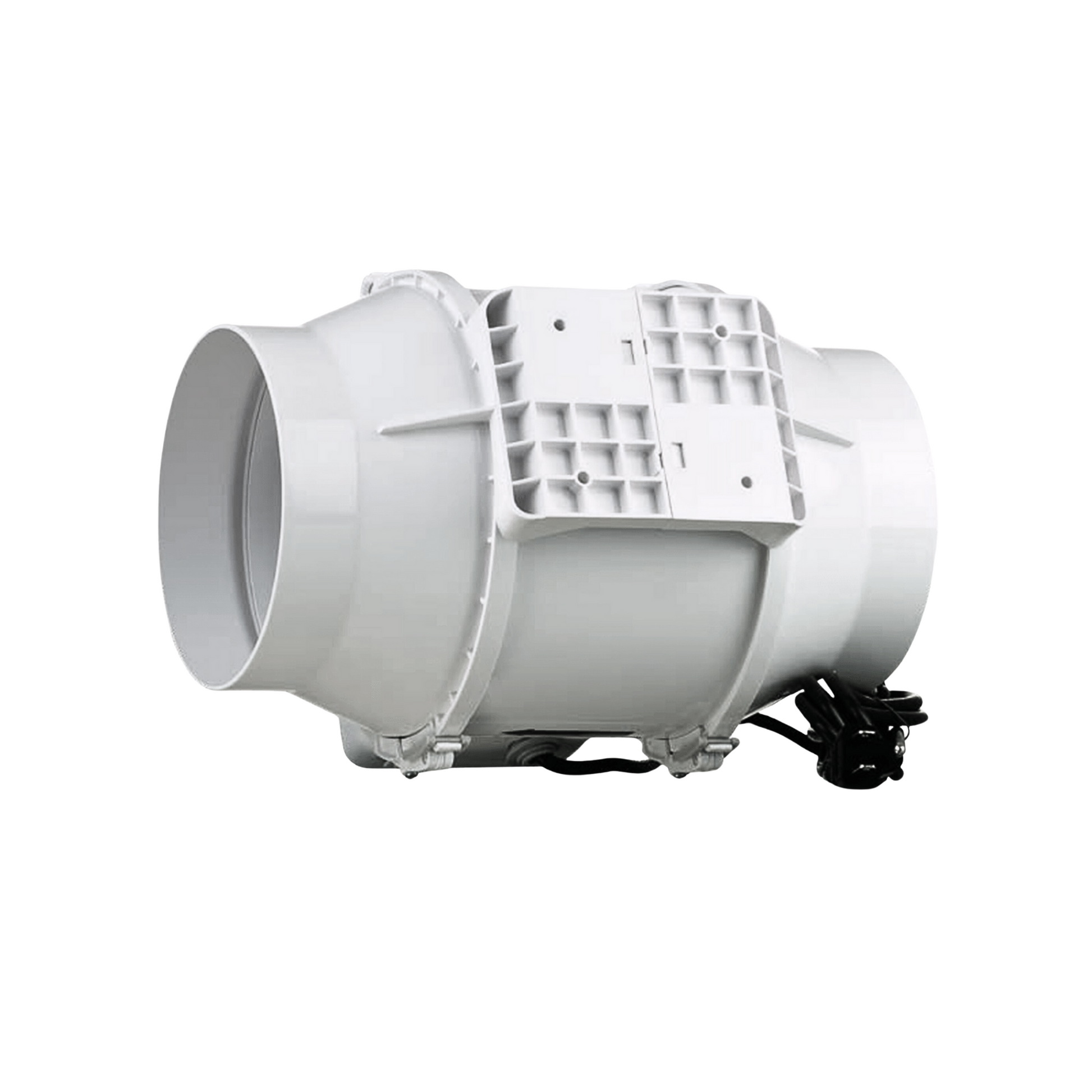

- Comes with integrated mounting plate/bracket

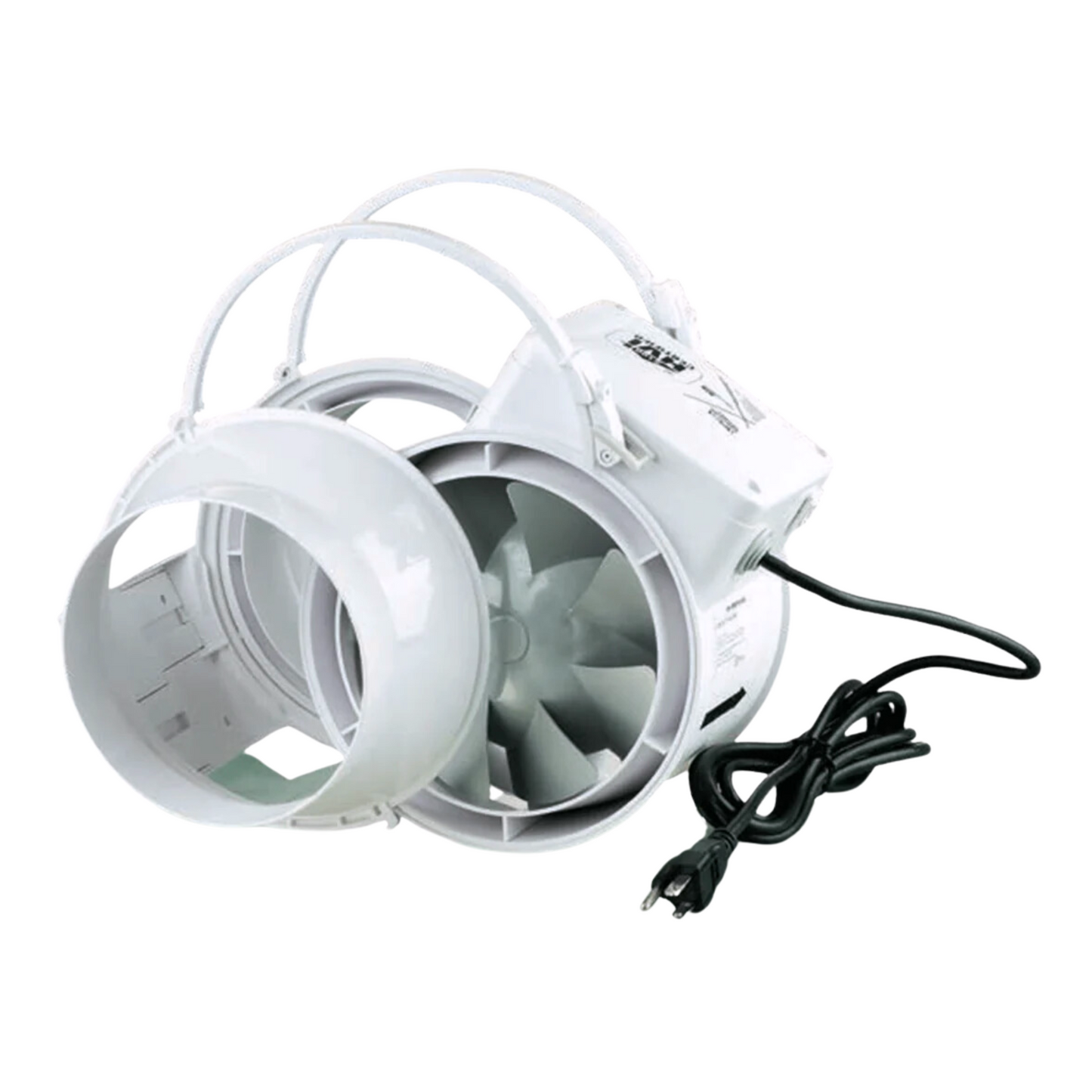

- Easy clean- remove the fan from the mounting plate for cleaning
- Quiet, 1.7-3.2 sones
- Airflow capacity up to 745 CFM
- Double-speed capacitor motor with thermal overload protection
- Long-life ball bearings (up to 40 000 hours)
- 35% more energy efficient than non EC motors
- Vibration free operation
- Commercial/Residential

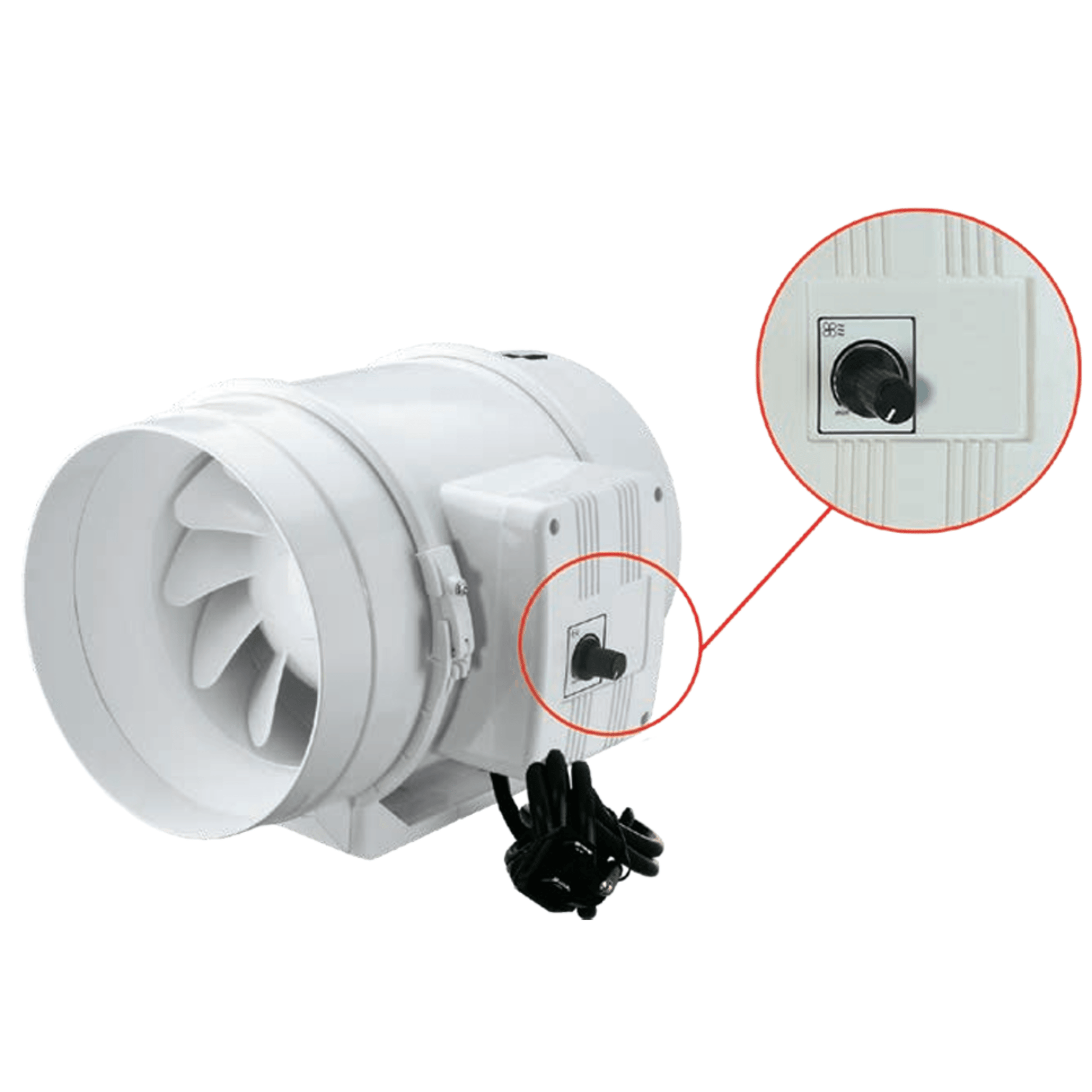

- Speed control knob
- 2 Year Warranty
Need assistance? Call us at 1-833-878-3687. Mon-Fri, 9 am to 5 pm (EST).
Details
Turbo Tube EC Motor Series | |||||
Model | TT EC 100 | TT EC 125 | TT EC 150 | TT EC 200 | TT EC 250 |
Duct Size | 4" | 5" | 6" | 8" | 10" |
Power Usage Watts | 25.9W | 35.4W | 52.4W | 121.3W | 170.6W |
Volts/Hz | 120/60 | 120/60 | 120/60 | 120/60 | 120/60 |
Sones | 1.7 | 1.8 | 2.6 | 3.2 | 3.2 |
CFM Maximum (0 PS WG) | 160 | 245 | 343 | 590 | 745 |
What's Included | Mounting plate and power cord |
Downloads

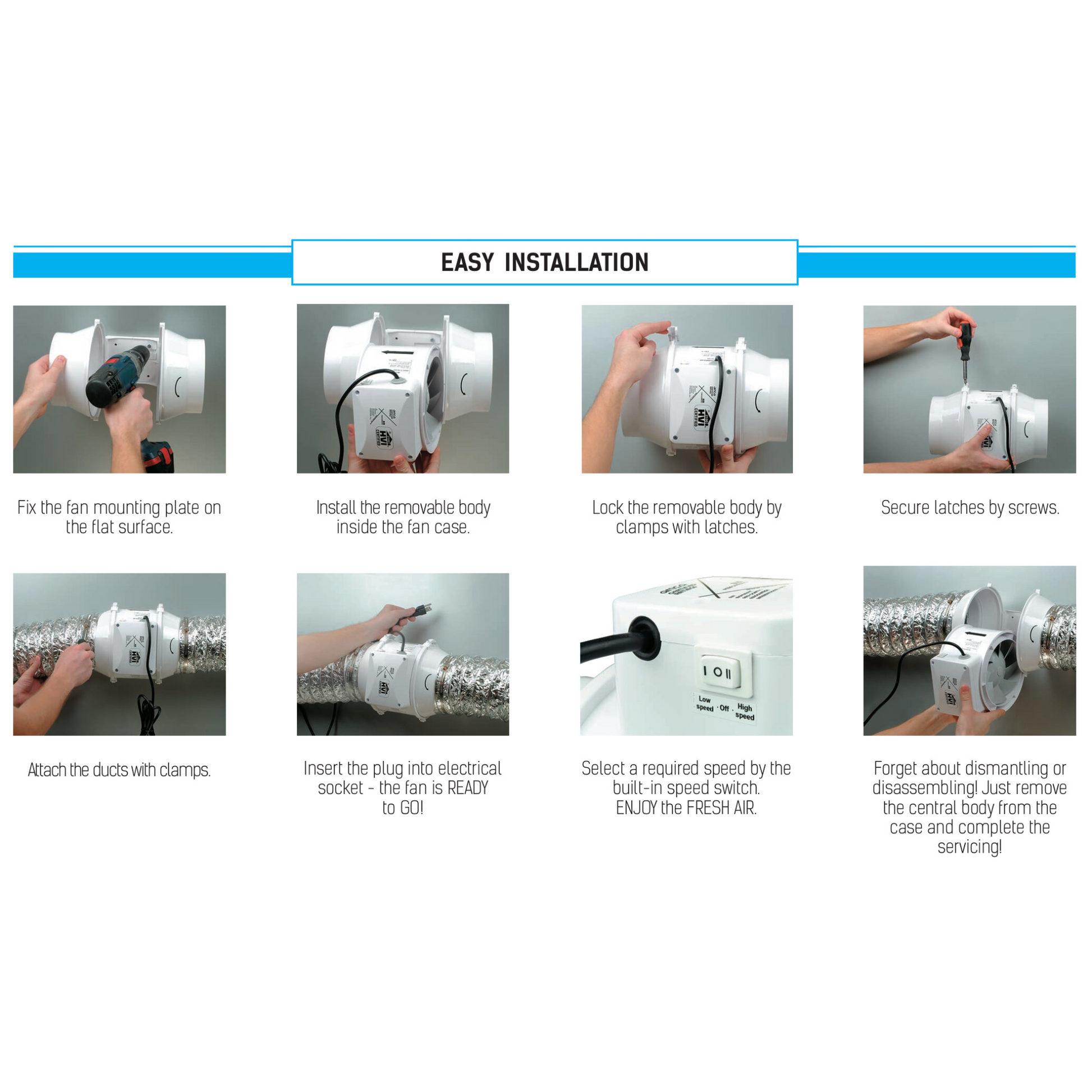

Installation
Certifications
