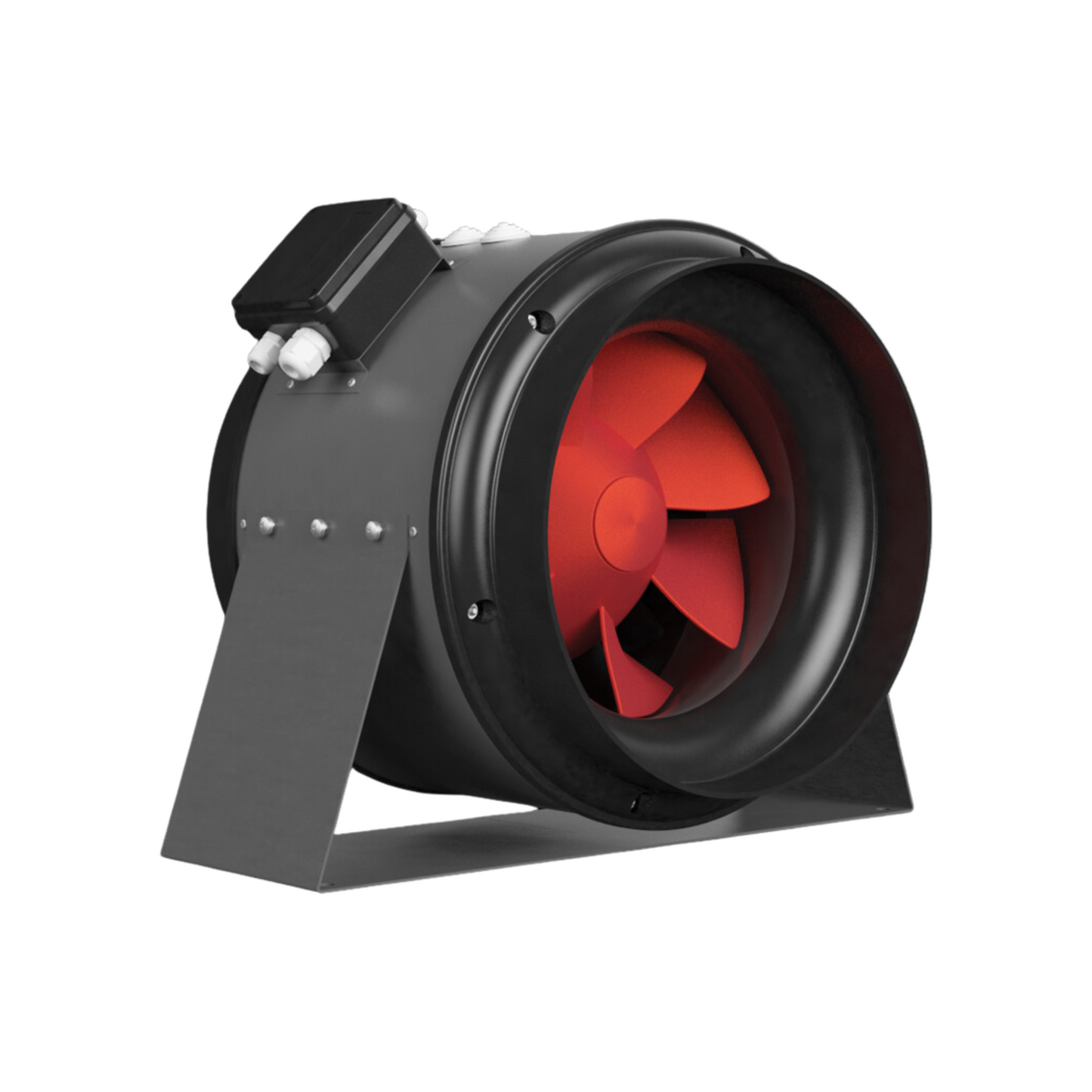

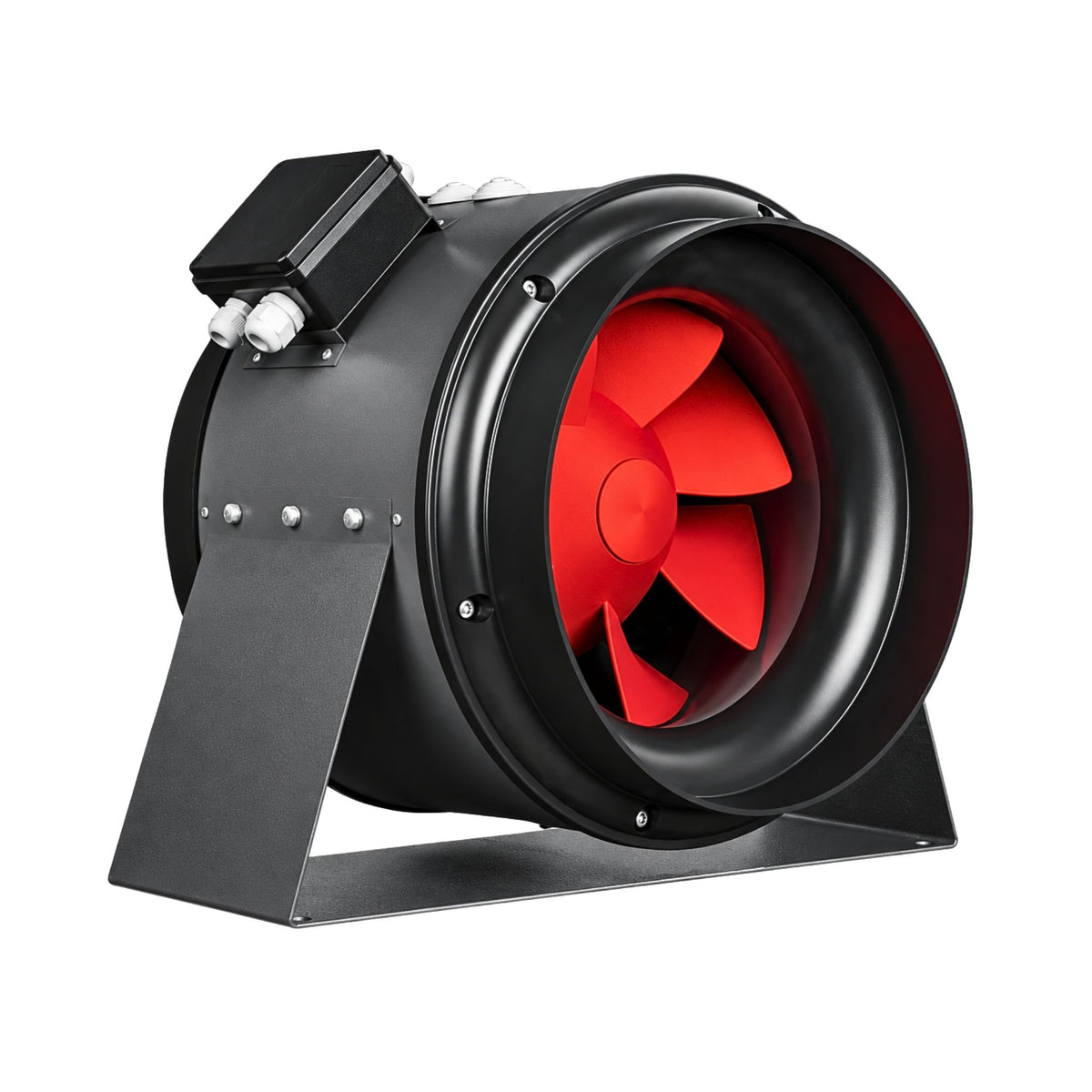

Built for demanding commercial and industrial ventilation applications, the Vents Boost 400 Inline Mixed Flow Duct Fan delivers exceptional air movement with a maximum airflow capacity of 2,112 CFM. Designed for integration with standard 16-inch round ductwork, this high-capacity ventilation fan provides a dependable solution for larger buildings, commercial facilities and industrial spaces requiring substantial air extraction or circulation.

Key Features at a glance:

• High-Capacity Airflow: Delivers up to 2,112 CFM for demanding commercial and industrial ventilation applications.
• 16-Inch Duct Compatibility: Designed for connection to standard 16-inch (400 mm nominal) round ventilation ductwork.
• Advanced Mixed Flow Impeller: Newly developed blade design engineered for effective, high-volume air movement.
• Low-Noise Performance: Published sound rating of 2.7 sones under specified testing conditions.
• Durable Construction: Reinforced polymer components and metal housing designed for demanding ventilation environments.
• Thermally Protected Motor: Single-speed capacitor motor with integrated thermal overload protection.
• Long-Life Ball Bearings: Engineered for an operating life of up to 40,000 hours.
• Straightforward Installation: Designed for integration into appropriately sized round ducted ventilation systems.
• Low-Maintenance Operation: Durable motor and bearing construction helps minimize routine servicing requirements.
• 2-Year Manufacturer's Warranty.

Featuring an advanced mixed-flow impeller, the Boost 400 combines the airflow characteristics of axial and centrifugal fan technology to deliver powerful ventilation performance. Its durable reinforced polymer construction and metal housing provide structural strength, while the single-speed capacitor motor incorporates thermal overload protection for reliable operation.

Engineered for straightforward installation and low-maintenance operation, the Vents Boost 400 offers an effective solution for new ventilation installations or upgrades to existing high-volume ducted systems. Need a 14" duct size Boost fan? click here.

Not sure which inline duct fan is suitable for your project? Explore our Complete Guide to Inline Fans to learn more about inline ventilation technology, airflow capacity and selecting the appropriate fan for your application.

Where Can the Vents Boost 400 Be Used?

With its 2,112 CFM maximum airflow capacity, the Boost 400 is well suited for a variety of high-volume ventilation applications, including:

• Warehouses and Distribution Centres: Supporting general ventilation and air circulation across larger indoor environments.
• Greenhouses and Agricultural Facilities: Providing high-capacity airflow for ventilation and air exchange.
• Industrial Workshops: Exhausting accumulated warm or stale air from appropriately designed ducted systems.
• Commercial Buildings and Offices: Supporting high-volume mechanical ventilation requirements.
• Restaurants and Hospitality Facilities: General-purpose ventilation in applicable non-grease-exhaust systems.
• Mechanical and Utility Rooms: Supporting ventilation systems designed around the specific airflow and safety requirements of the space.

Key Features & Benefits

• High-Capacity Airflow: Delivers up to 2,112 CFM for demanding commercial and industrial ventilation applications.
• 16-Inch Duct Compatibility: Designed for connection to standard 16-inch (400 mm nominal) round ventilation ductwork.
• Advanced Mixed Flow Impeller: Newly developed blade design engineered for effective, high-volume air movement.
• Low-Noise Performance: Published sound rating of 2.7 sones under specified testing conditions.
• Durable Construction: Reinforced polymer components and metal housing designed for demanding ventilation environments.
• Thermally Protected Motor: Single-speed capacitor motor with integrated thermal overload protection.
• Long-Life Ball Bearings: Engineered for an operating life of up to 40,000 hours.
• Straightforward Installation: Designed for integration into appropriately sized round ducted ventilation systems.
• Low-Maintenance Operation: Durable motor and bearing construction helps minimize routine servicing requirements.
• 2-Year Manufacturer's Warranty.
