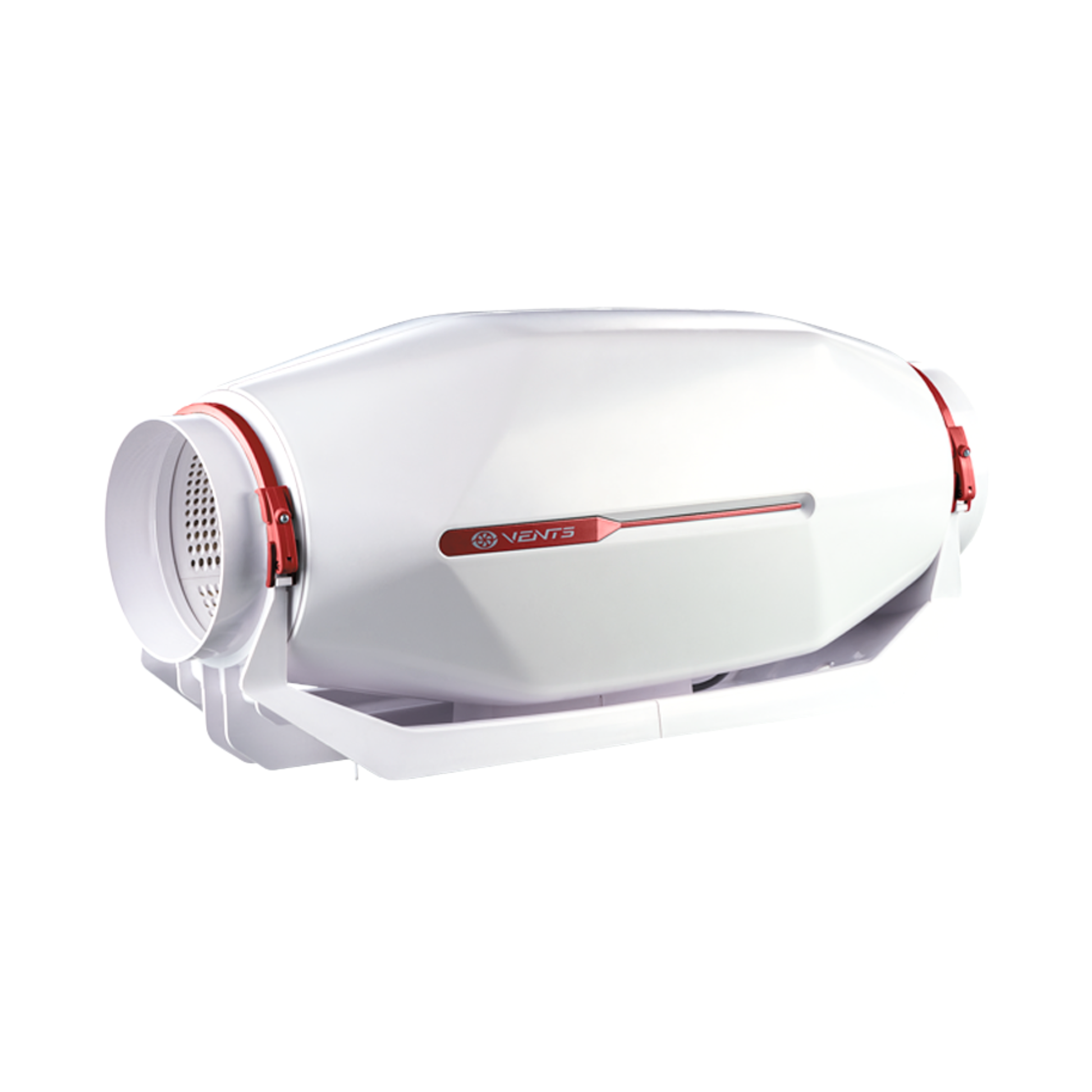

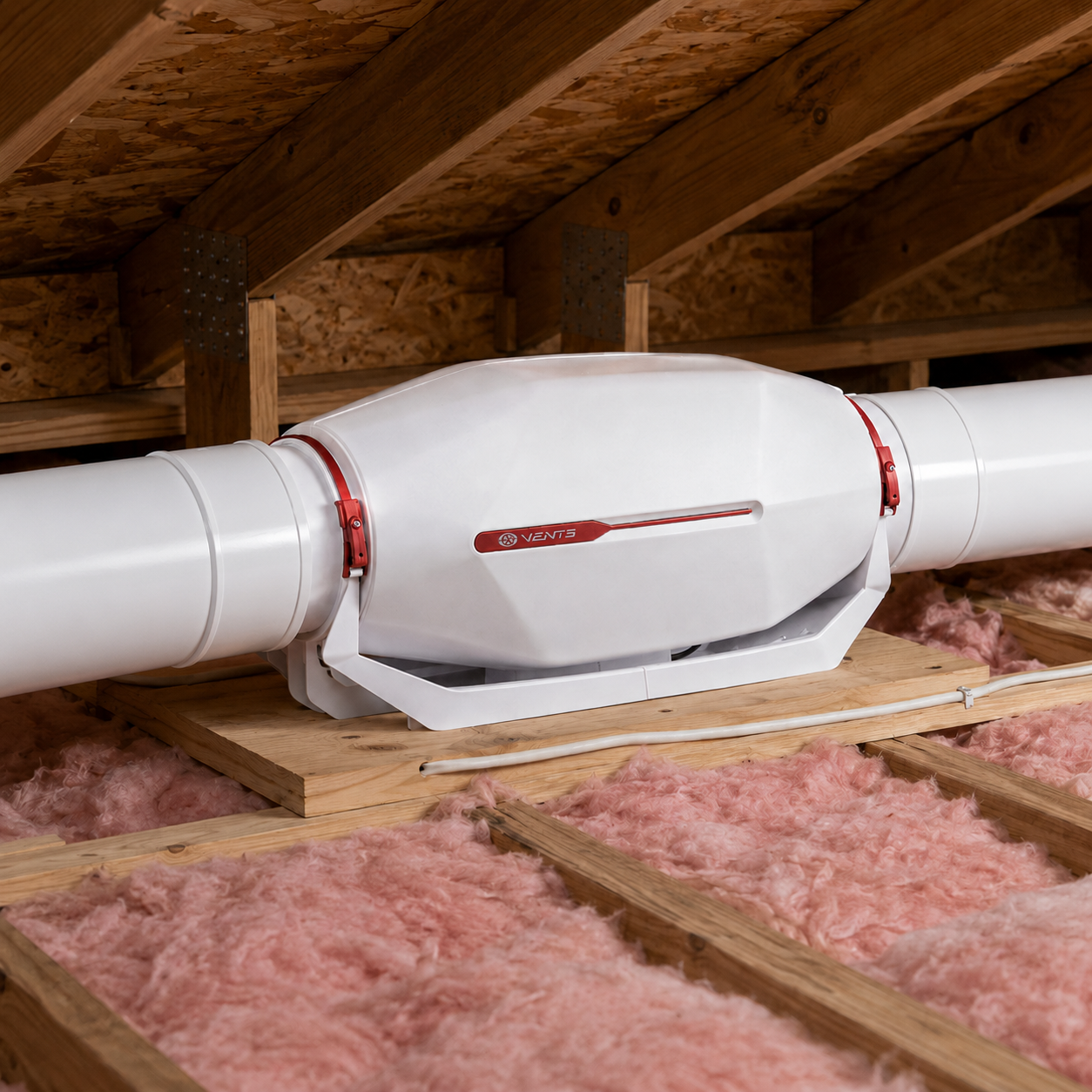

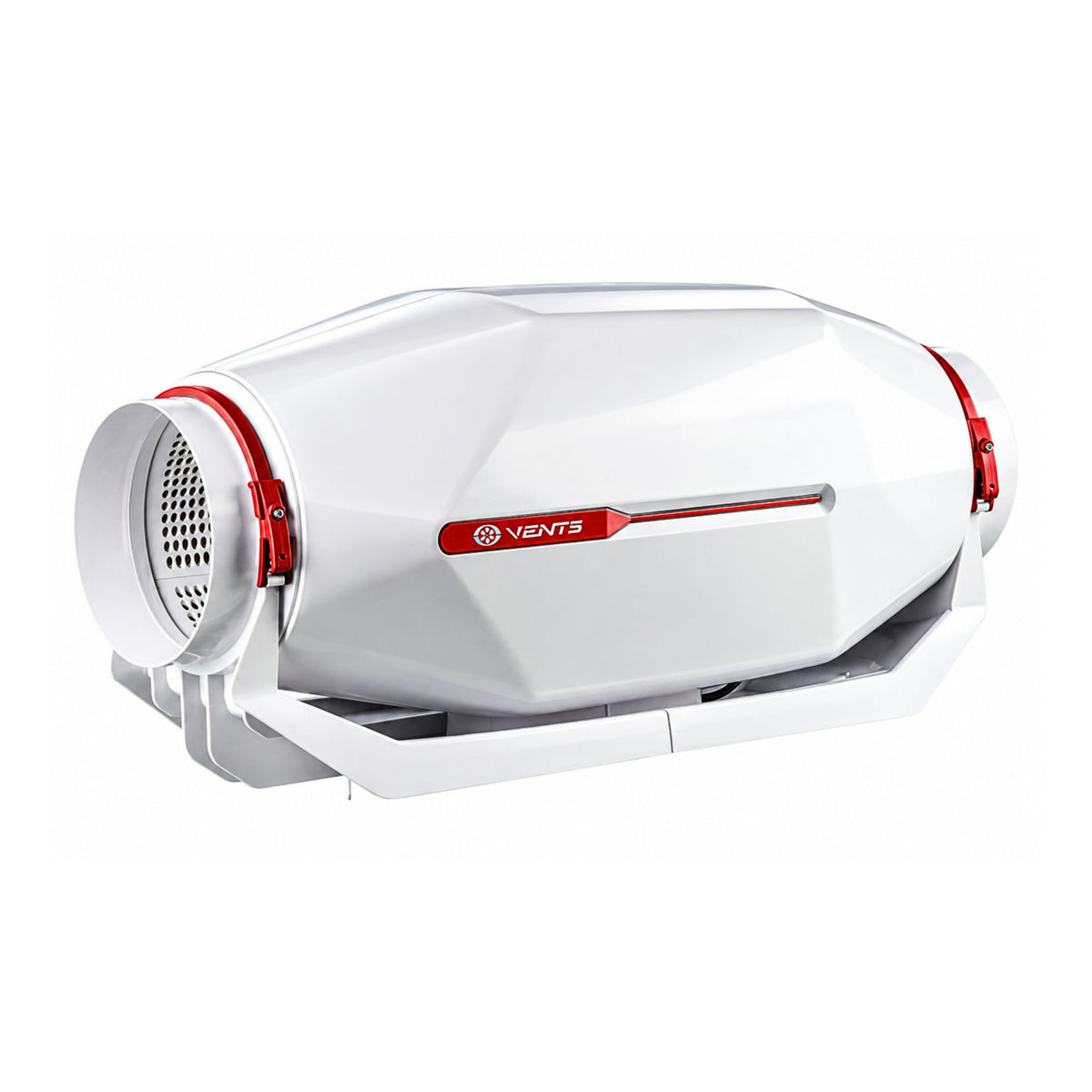

The Vents Stream 150/160 Heat and Sound Insulated Inline Fan is a high-performance 6-inch inline ventilation fan engineered for quiet operation, energy efficiency, and long-term durability. Designed for residential and light commercial applications, this insulated inline fan is ideal for bathrooms, kitchens, grow rooms, utility spaces, and any environment where noise control and thermal stability matter.

By combining a sound-absorbing insulated housing, reliable airflow at up to 265 CFM, and flexible speed control, the Stream 150/160 delivers powerful ventilation without compromising comfort.

Heat & Sound Insulated Construction

The Stream 150/160 features a rugged, impact-resistant ABS plastic housing that is corrosion-free and built for long service life. Inside, the casing is fully lined with 2 inches of mineral wool insulation, significantly reducing airborne noise while helping maintain air temperature as it moves through the duct system. An airtight electrical terminal box provides a sealed and secure power connection, improving safety and preventing air leakage.

Adjustable Speed Control for Efficient Ventilation

This 6” insulated inline fan is designed for adaptable airflow control, allowing you to match ventilation output to real-world demand.

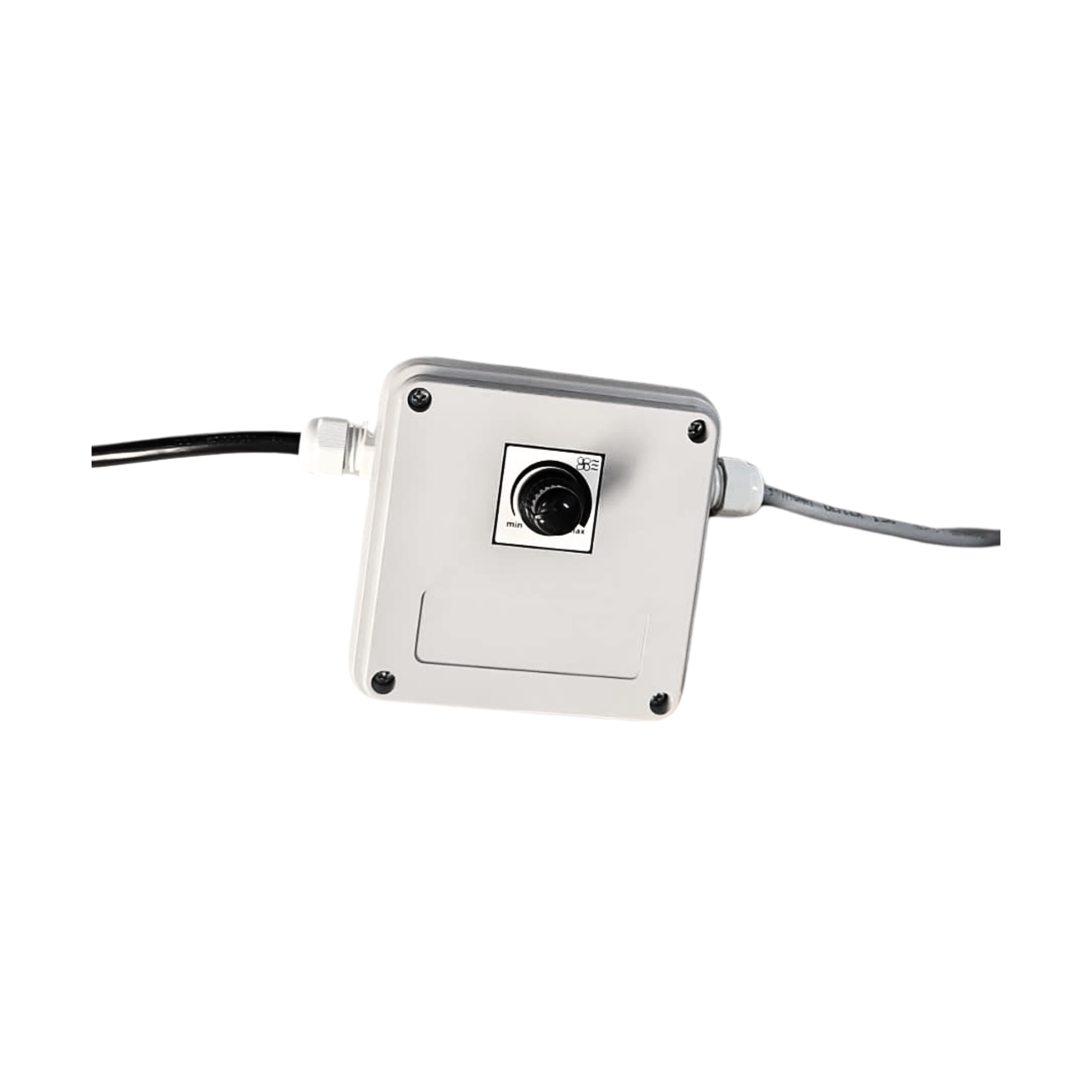

• Includes an external variable speed controller
• Compatible with TRIAC and auto-transformer speed controllers
• Ideal for demand-based, energy-saving ventilation setups

Whether you need continuous low-speed ventilation or higher airflow during peak humidity, the Stream 150/160 adjusts easily and efficiently.

Energy-Efficient Motor with Long Service Life

The fan is powered by a single-phase, multi-speed motor engineered for low energy consumption and dependable operation. Built-in thermal overload protection safeguards the motor, while precision ball bearings rated for approximately 40,000 hours of continuous operation ensure exceptional longevity.

• Suitable for air stream temperatures up to 131°F (55°C)
• Designed for continuous or intermittent operation

Simple Installation & Mounting Flexibility

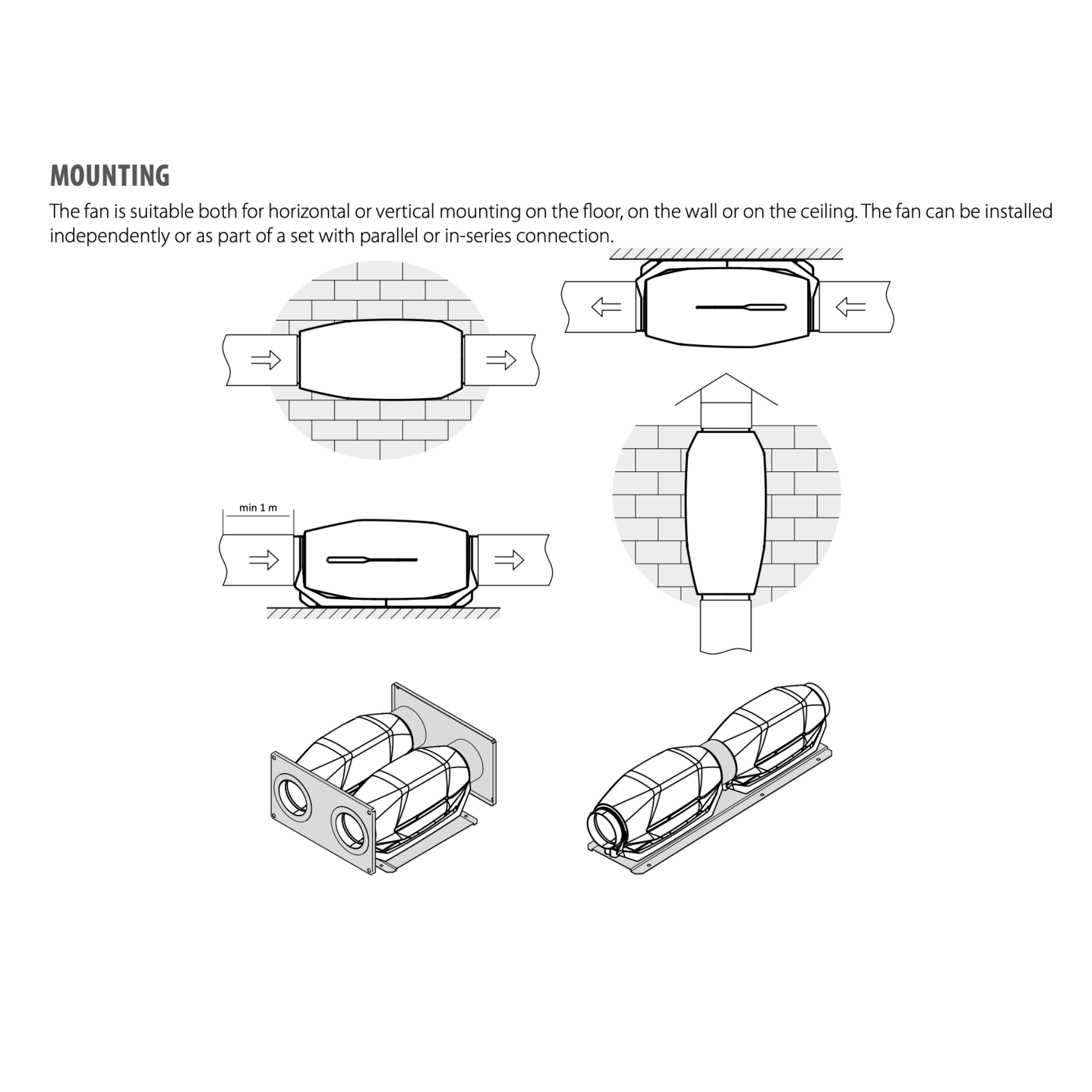

Designed for 6-inch round ducting, the Stream 150/160 installs quickly using the included mounting brackets. The fan can be mounted horizontally or vertically on walls, ceilings, or floors, making it suitable for a wide range of ventilation layouts.

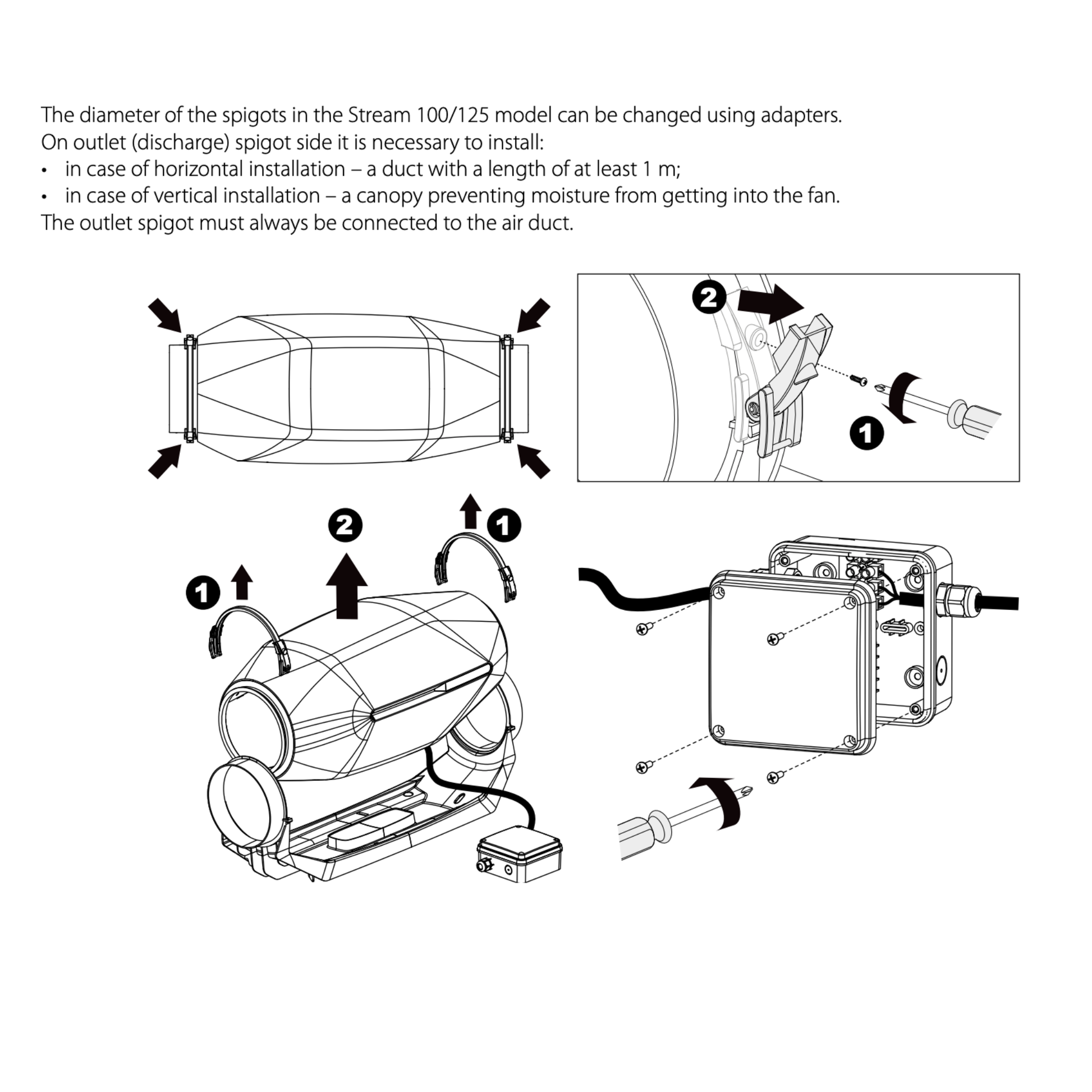

All electrical connections should be completed according to the supplied installation manual and wiring diagram located on the terminal box.

Ideal Applications

The Vents Stream 150/160 insulated inline fan is well suited for:

• Bathroom exhaust ventilation
• Kitchen ventilation systems
• Utility rooms and laundry areas
• Grow rooms and controlled environments
• Supply and exhaust air systems
• Noise-sensitive residential or commercial spaces

Why Choose the Stream 150/160?

If you’re looking for a quiet 6-inch inline fan that combines sound insulation, thermal efficiency, and adjustable airflow, the Stream 150/160 is a dependable, energy-efficient solution built to perform.

Want to learn more about how Stream inline fans work and how to choose the right model? Read our blog to make a confident, informed decision.

Key Features:

• Heat & Sound Insulated Housing - Internal 2” mineral wool insulation reduces noise and helps prevent heat loss
• Up to 265 CFM
• Durable ABS Plastic Casing - Impact-resistant and corrosion-free for long-term reliability
• Quiet Inline Fan Design - Ideal for noise-sensitive applications
• Variable Speed Control Included – Adjustable airflow to match ventilation demand
• Energy-Efficient Motor - Low power consumption with reliable performance
• Long Service Life - Ball bearings rated for approximately 40,000 hours
• Thermal Overload Protection - Built-in motor safety protection
• High Temperature Tolerance - Suitable for air stream temperatures up to 131°F
• Flexible Installation – Horizontal or vertical mounting with included brackets

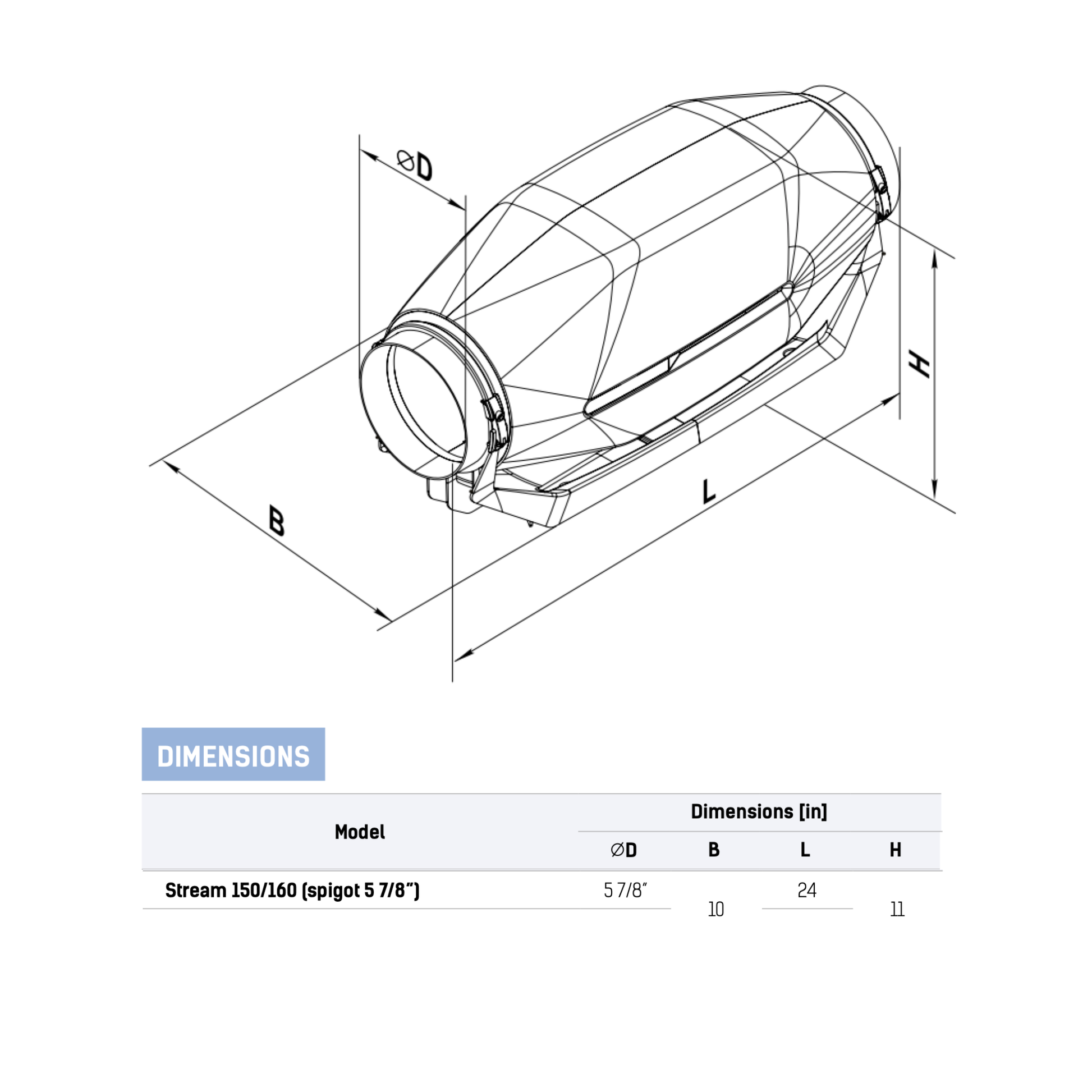

• 6” Round Duct Compatibility - Designed for standard 6-inch duct systems
• Airtight Electrical Terminal Box - Secure, sealed power connection

Looking to purchase in bulk or need project pricing?
Looking to buy in larger quantities? Call us toll-free or email our Contractor friendly sales team - we’ll get you great pricing for your project
