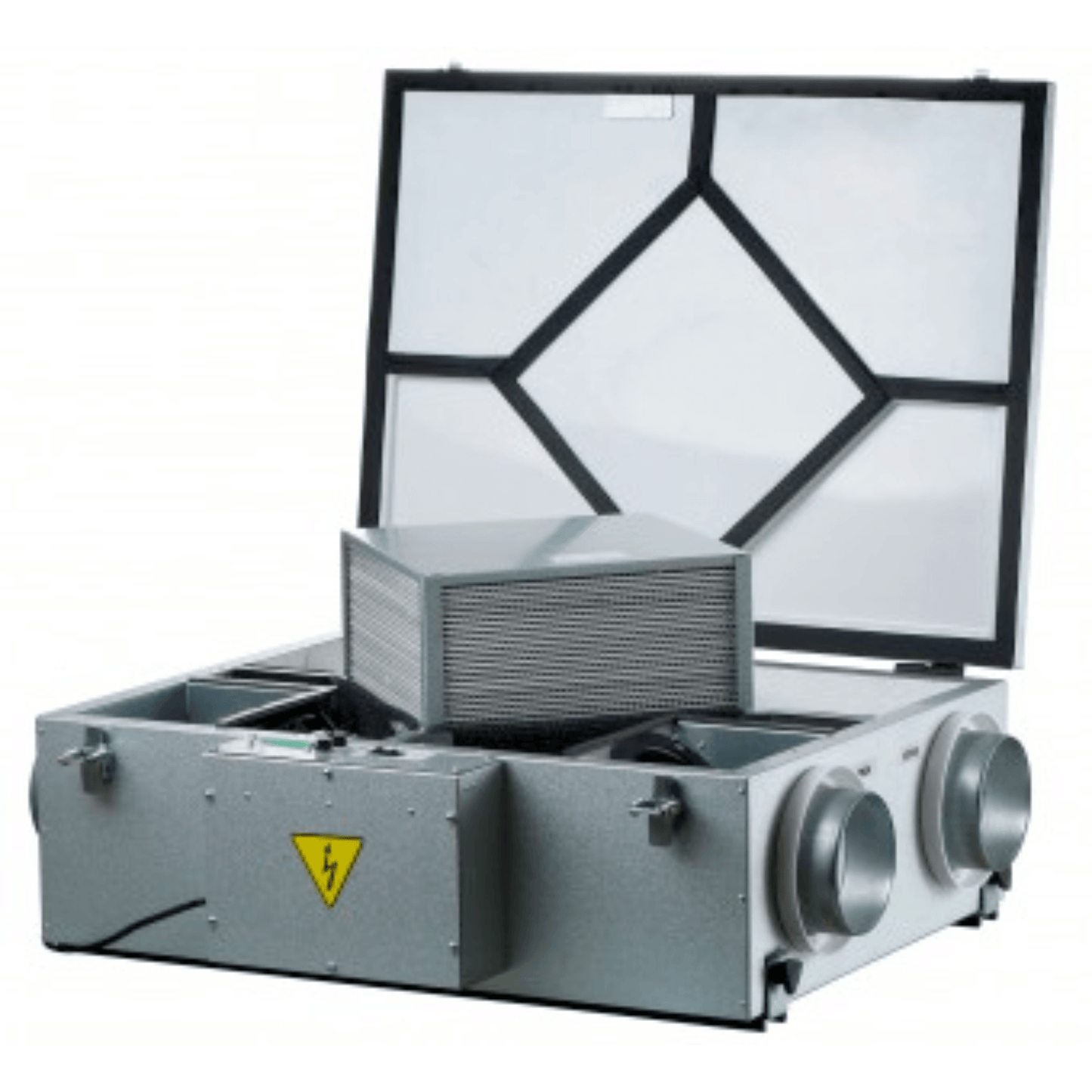

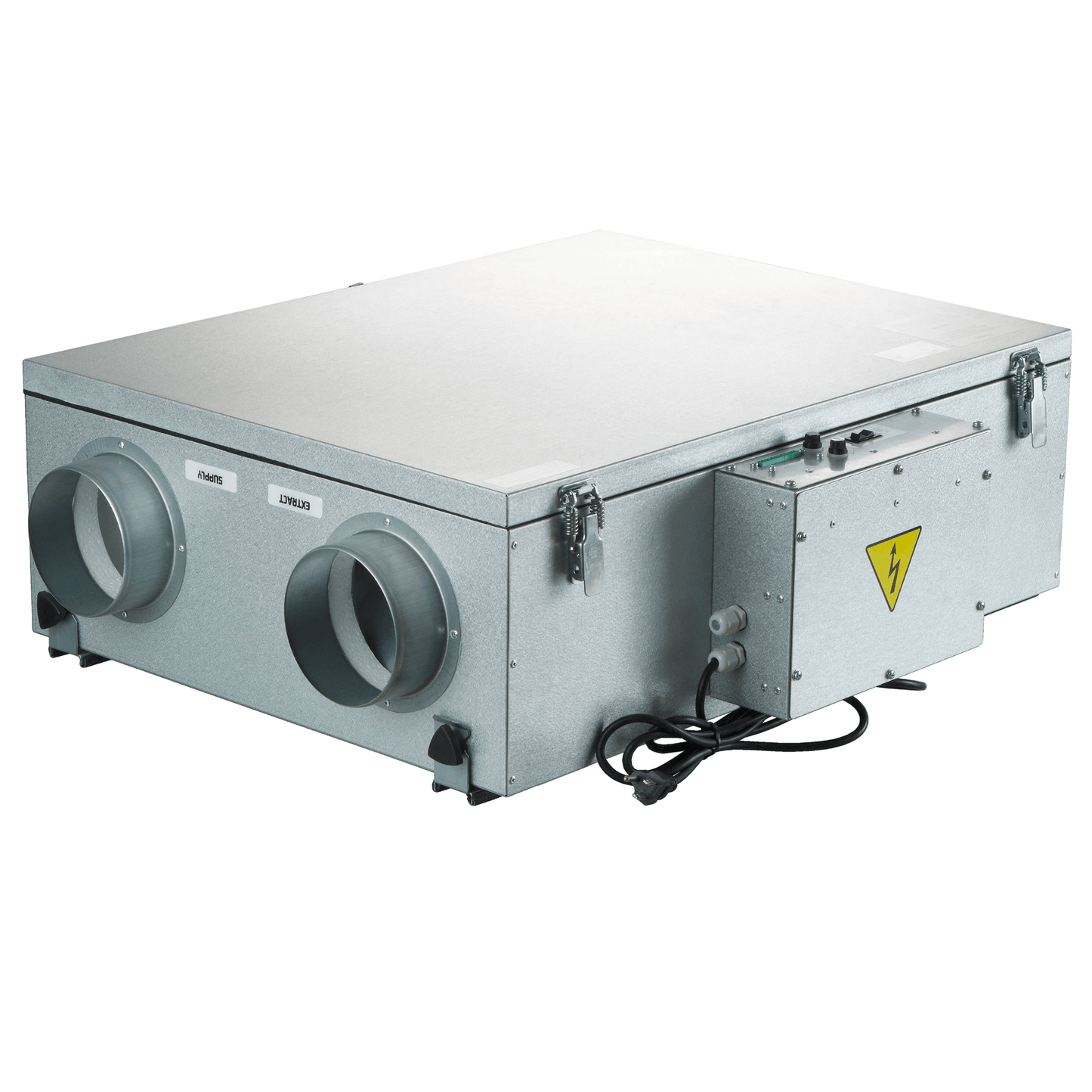

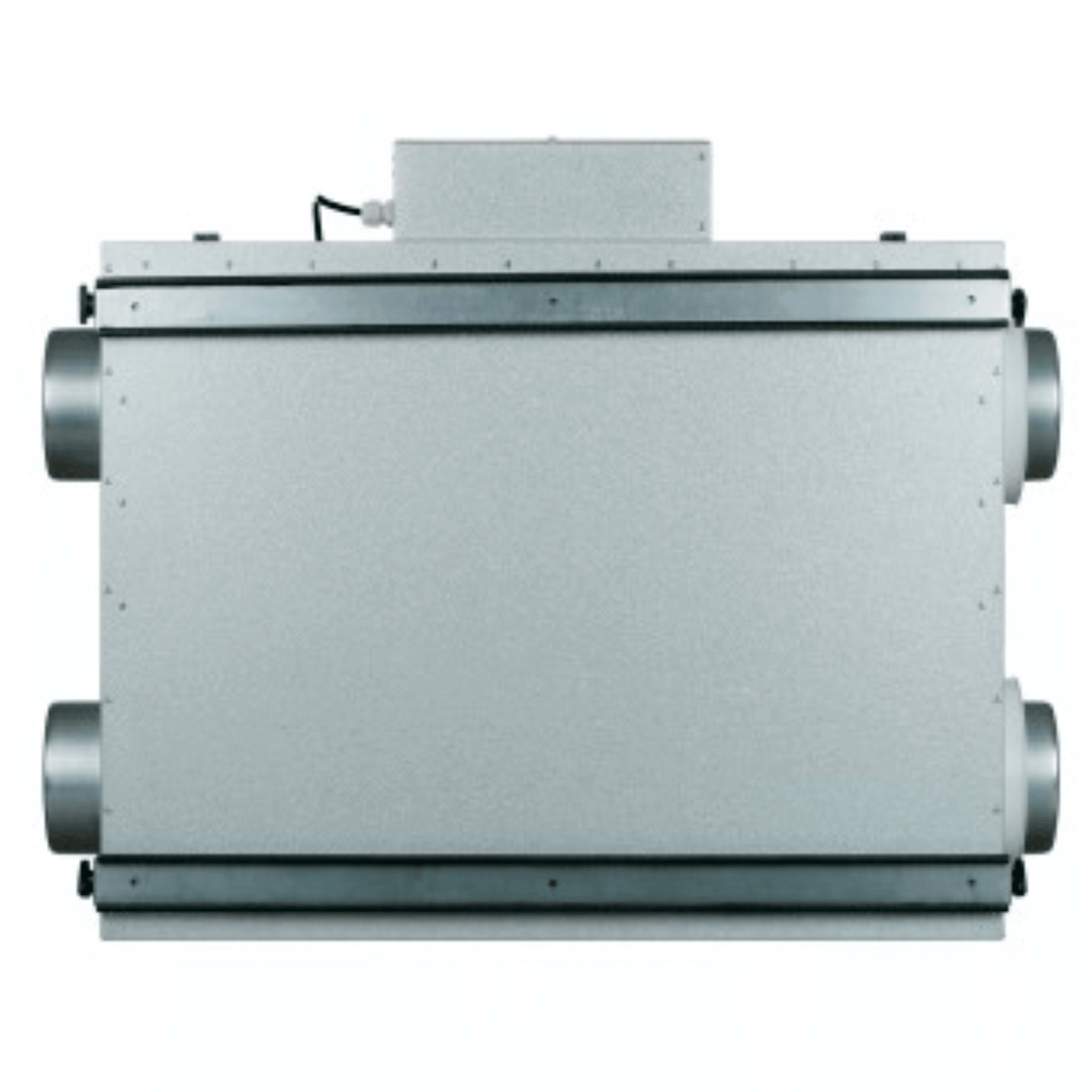

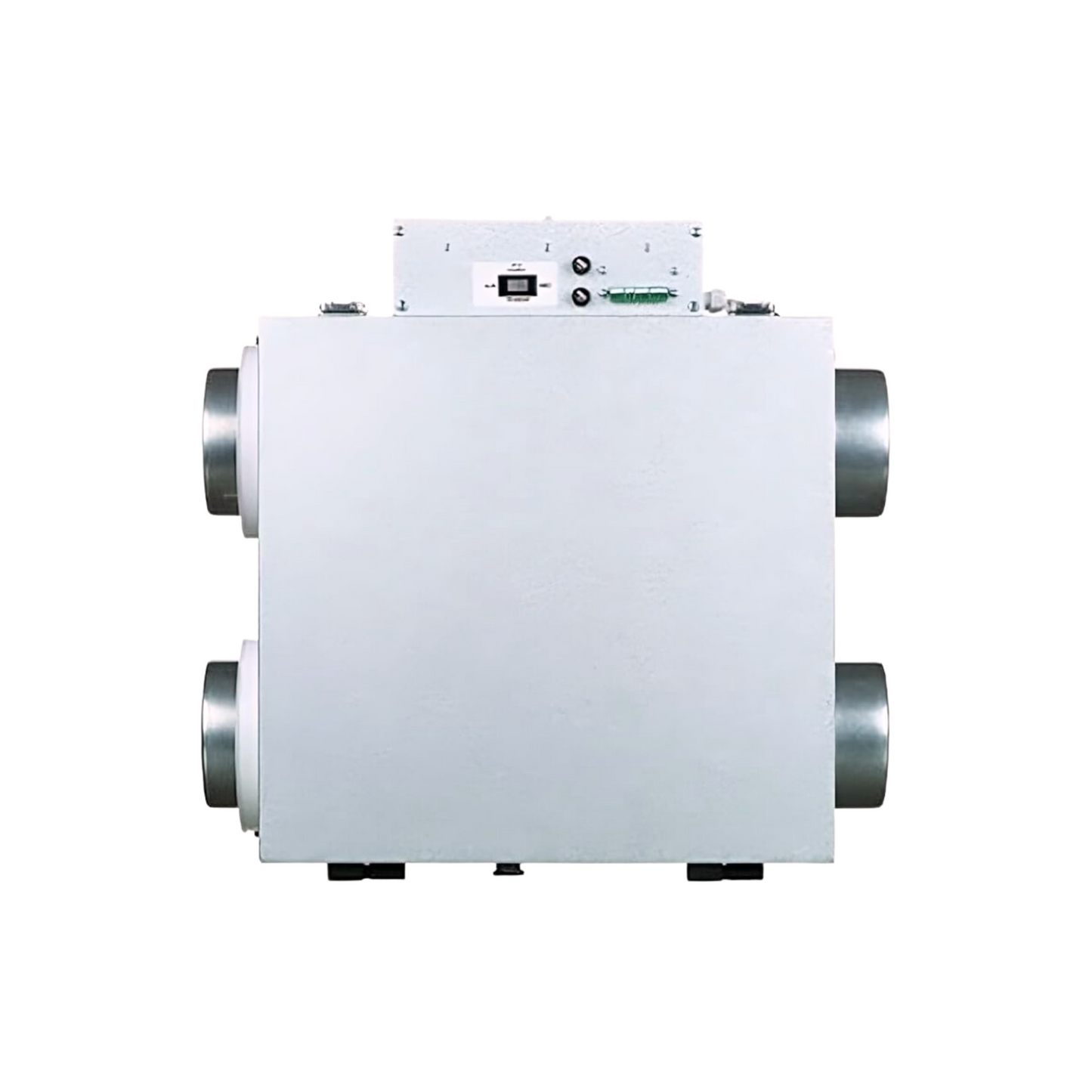

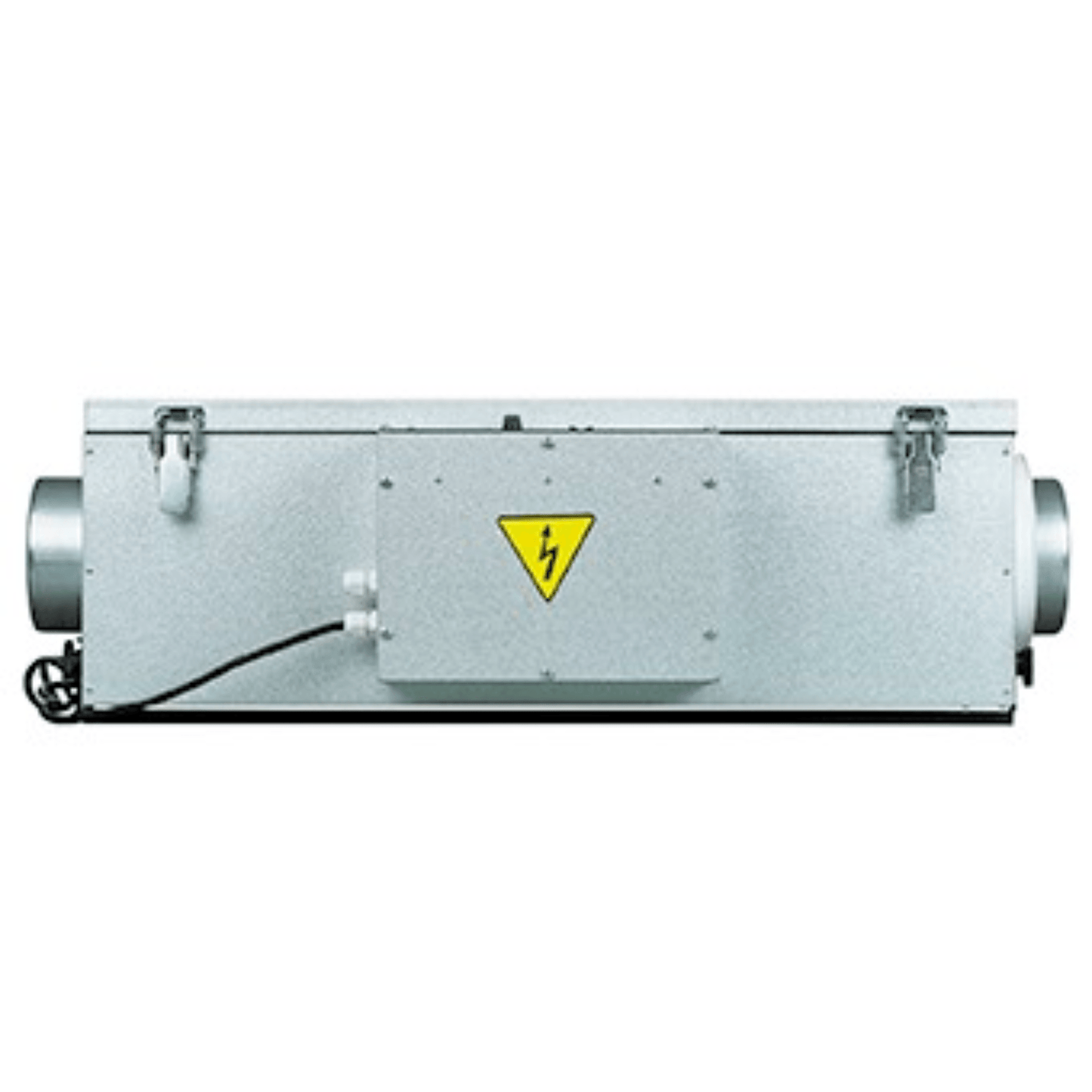

Vents Frigate 150 Series EC Motor Energy Recovery Ventilators

Vents Frigate 150 Series EC Motor Energy Recovery Ventilators

$1,507.00
$1,507.00
Sale Sold out
Free Shipping!

In stock

Manufacturer Direct. Orders ship same day with free shipping included!

Model

Introducing the Frigate 150 ERV series: Elevate your indoor air quality effortlessly in homes up to 3700 sq. ft. Experience an airflow of up to 181 CFM with our sleek 9 5/8-inch profile. Explore our three models tailored to your unique requirements.

Available in a standard configuration, the upgraded Frigate 150ERV R and the Frigate 150ERV CF (constant flow option) that features auto balancing. 10 Year warranty on Core

Features

  • Polystyrene cross-flow core
  • MERV 6 supply exhaust filters
  • Up to 181 CFM
  • Recovery efficiency up to 60%
  • Sound level - 1.9 sones
  • 5" Duct diameter
  • 9 5/8”x 23 7/8” x 26 1/2”
  • 10 Year warranty on Core

Need assistance? Call us at 1-833-878-3687, Mon-Fri, 9 am to 5 pm (EST).

Details

Vents Frigate 150 EC Series ERVs

150 EC150R EC150CF EC
Maximum air flow capacity (at 0.1 in. w.g.)181 CFM181 CFM181 CFM
Sensible recovery efficiency at 32°F (0`C)73%  73%  73%
MERV6 supply/exhaust filtersYesYesYes
Sound level1.9 Sones
Power consumption186 W186 W186 W
Fan Efficacy2.56 CFM/W
Duct diameters5 inches
Dimensions (H x W x D)9 5/8”x 25 1/8” x 27 3/4”

Frigate EC Motor Model Comparison

Frigate EC Model80EC80 R EC120 EC120 R EC120 ERVEC 120 ERV REC150EC HRV150 R EC HRVERV 150 ECERV 150 R EC
Maximum continuous air flow capacity (at 0.1 in. w.g.)81 CFM189 CFM161 CFM150 CFM186 CFM181 CFM
Sensible recovery efficiency at 32°F (0`C)73%62%71%72%69%73%
Apparent Sensible Effectiveness at 32°f (0`C)82%69%73%74%78%82%
MERV6 supply/exhaust filtersYes - All Models - Washable and replaceable
Sound level1.4 Sones1.9 Sones1.5 Sones2.1 Sones1.9 Sones
Fan efficacy1.72 CFM/W2.86 CFM/W2.78 CFM/W2.83 CFM/W2.56 CFM/W
Power consumption61 W204 W175 W186 W186 W
Recovery coreEnthalpyPolystyrene cross-flowEnthalpyPolystyrene cross-flowEnthalpy
Duct diameters5" Duct diameter
Dimensions (H x W x D)9 1/8”x 20 1/8” x 21 1/8”9 5/8”x 23 7/8” x 26 1/2”9 5/8”x 25 1/8” x 27 3/4”
Fan defrostYes Yes Yes Yes Yes
Recirculation Yes Yes Yes Yes Yes

Downloads

Frigate 120/CF EC specs

Frigate 120R EC specs

Frigate brochure

Frigate EC series Install

Frigate EC User Manual

Choosing the right Frigate/Brig for your home

Frigate/Brig ModelMax CFMRecommended House Size
Series 80 EC ERV93   up to 1900 sq ft
Series 120 EC ERV 127up to 2700 sq ft
Series 150 EC ERV178 up to 3700 sq ft
Brig 200 ERV213 up to 4500 sq ft
Brig 300 ERV257   up to 5200 sq ft

based on a dwelling with 9' ceilings. Check with your HVAC technician/installer for the most accurate data.

* Max CFM values can vary slightly between the ERV or HRV version in that series.



Download infographic - Vents CFM calculator

Why you need a Frigate ERV or HRV

View full details
