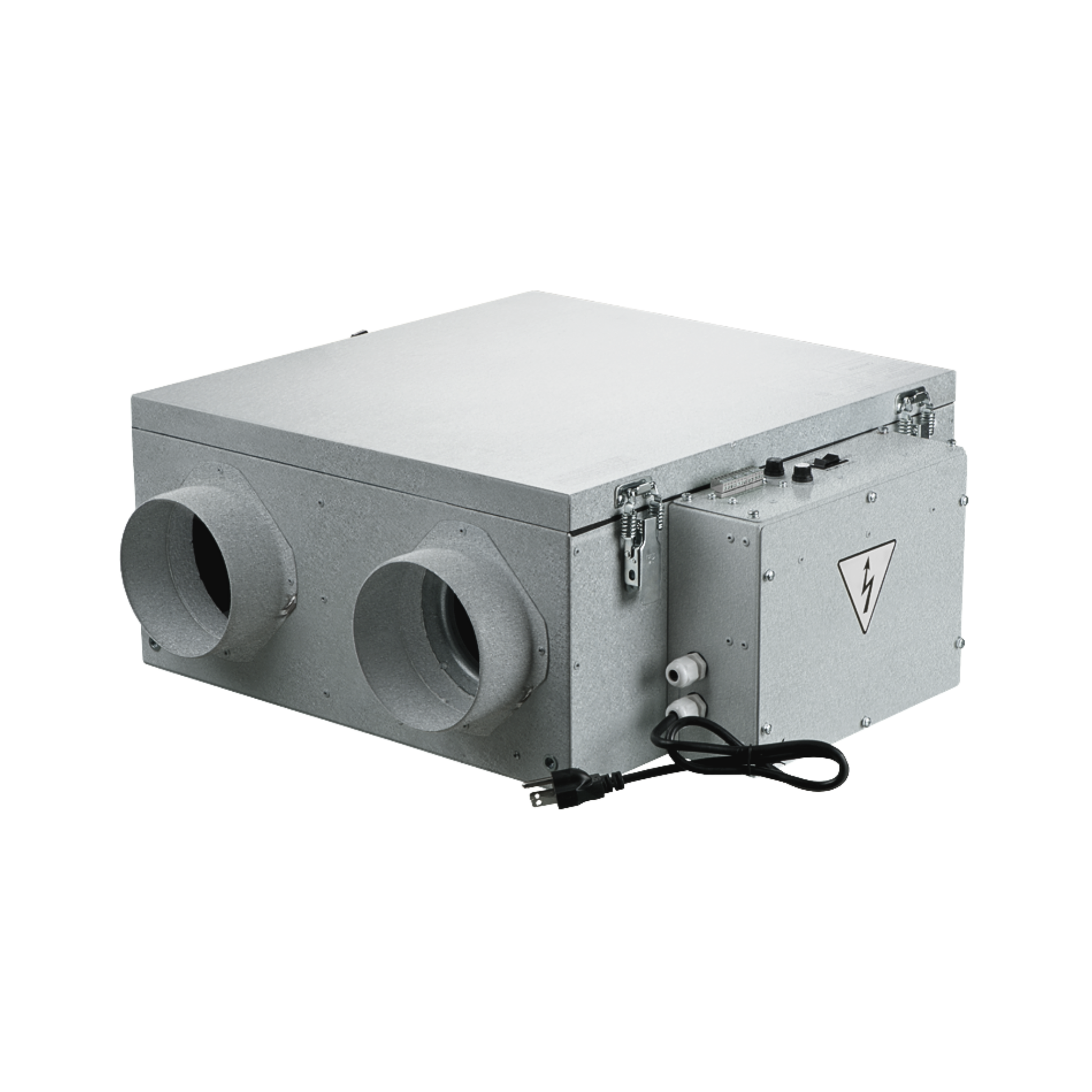

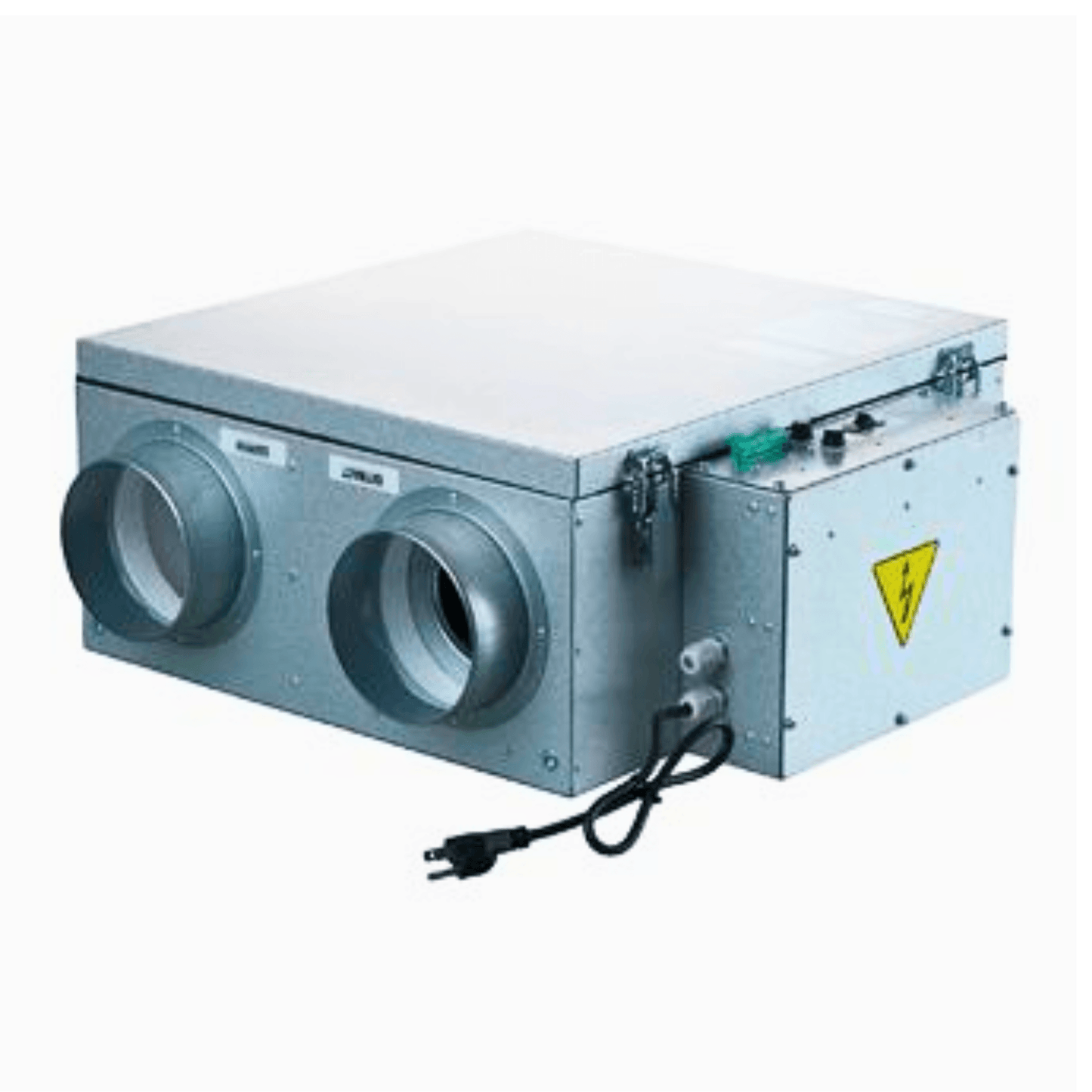

Vents Frigate 80 Series EC Motor Energy Recovery Ventilators
Vents Frigate 80 Series EC Motor Energy Recovery Ventilators
In stock
Manufacturer Direct. Orders ship same day with free shipping included!
Couldn't load pickup availability

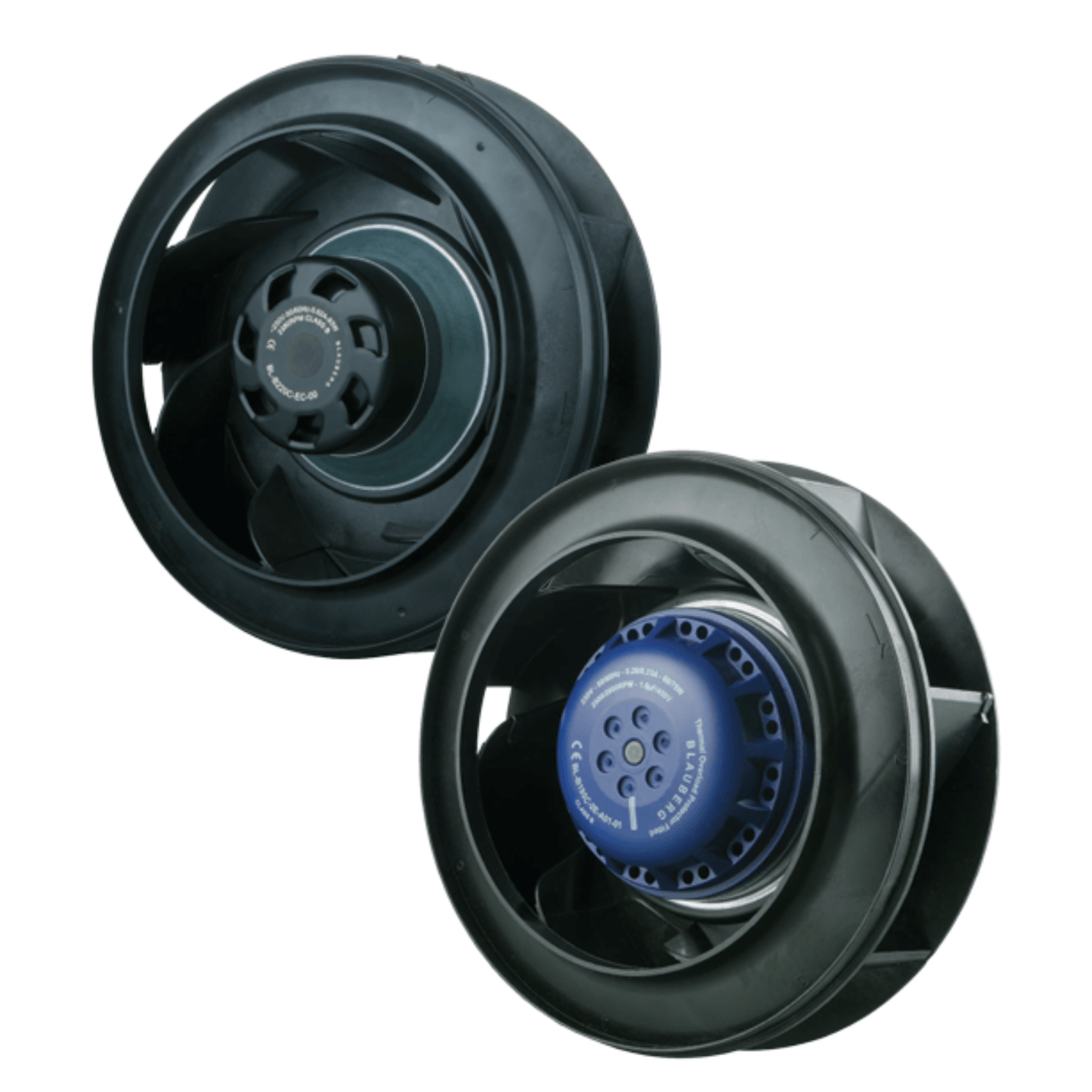

The Frigate 80 Series EC equipped ERVs are outfitted with highly efficient electronically commutated (EC) motors, boasting an external rotor and backward-curved blade impeller.
These EC motors deliver exceptional performance and offer a wide range of speed control options. Both the electric motors and impellers are meticulously balanced to ensure optimal operation. 2 year warranty. An ideal solution for apartments, cottages and tiny homes.
Features

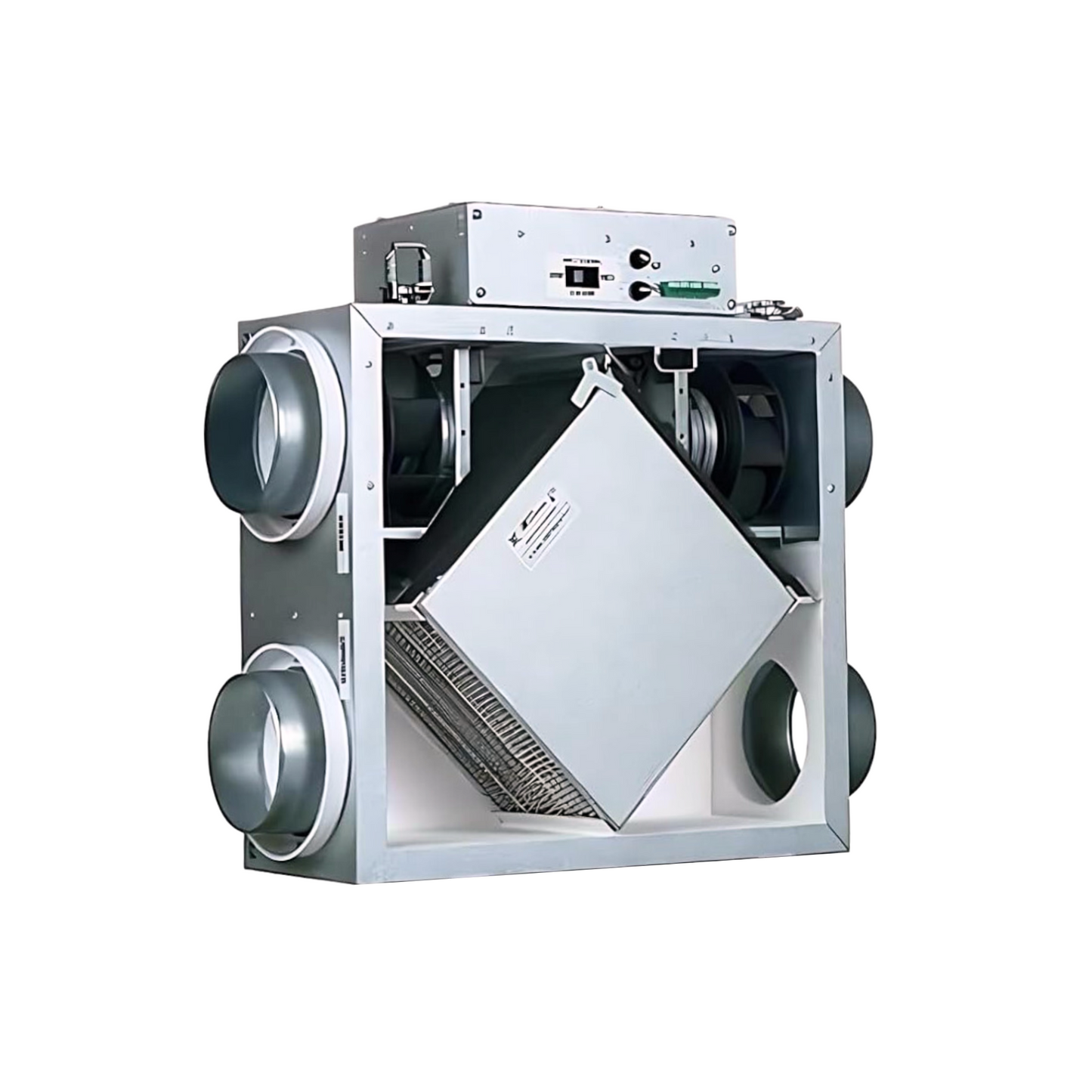

- Enthalpy recovery core
- MERV 6 supply exhaust filters
- Up to 81 CFM
- Recovery efficiency up to 73%
- Sound level - 1.4 sones
- 5" Duct diameter
- Slim casing - 9 1/8"
- 10 year warranty on the core
Need assistance? Call us at 1-833-878-3687, Mon-Fri, 9 am to 5 pm (EST).
Details
Frigate 80 EC Series ERV | |||
80 EC | 80R EC | 80CF EC | |
Maximum continuous air flow capacity (at 0.1 in. w.g.) | 81 CFM | 81 CFM | 81 CFM |
Sensible recovery efficiency at 32°F (0`C) | 73% | 73% | 73% |
MERV6 supply/exhaust filters | Yes | Yes | Yes |
Sound level | 1.4 Sones | ||
Power consumption | 61 W | 61 W | 61 W |
Fan Efficacy | 1.72 CFM/W | ||
Duct diameters | 5 inches | ||

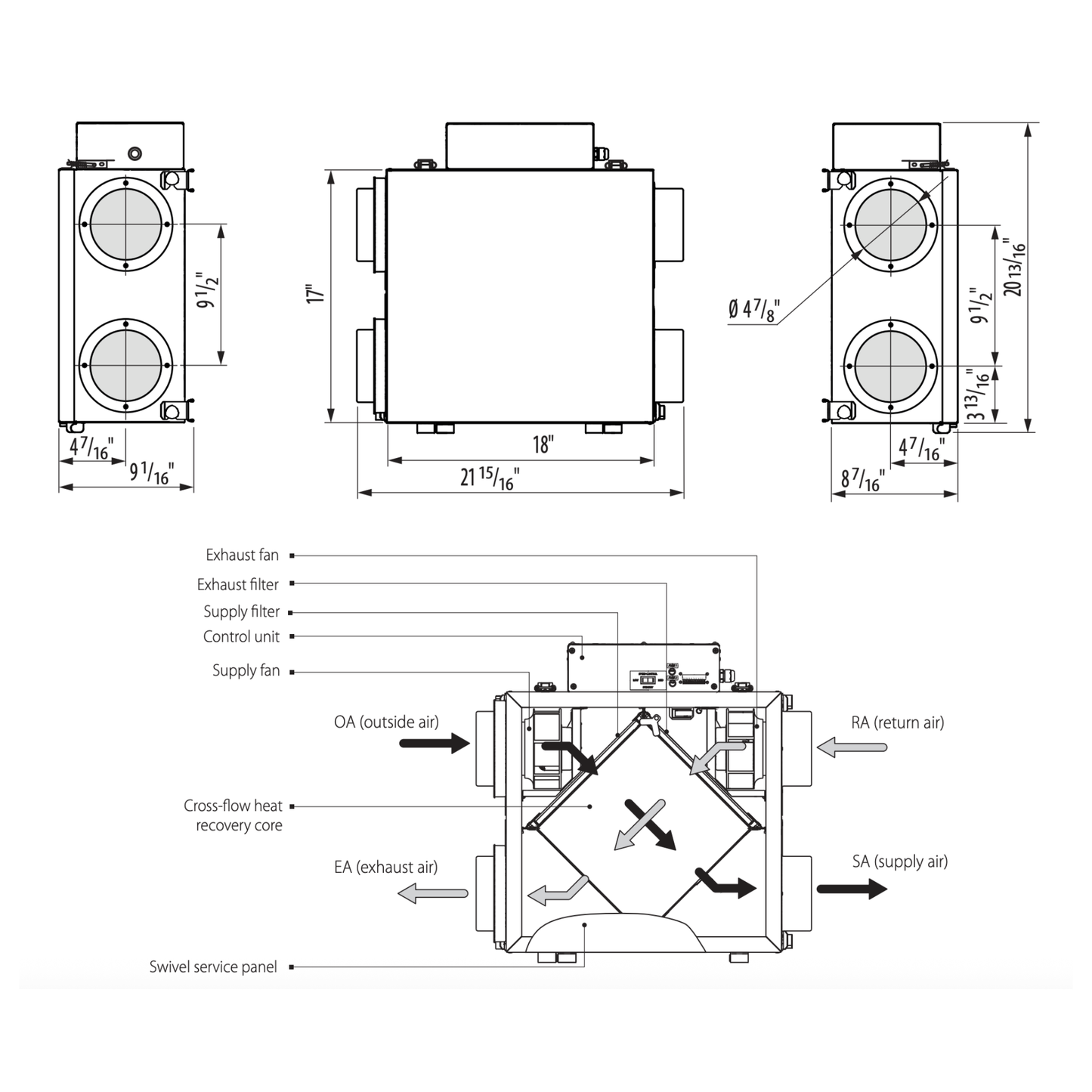

Dimensions (H x W x D) | 9 1/8”x 20 1/8” x 21 1/8” |
Frigate EC Motor Model Comparison
Frigate EC Model | ERV 80 EC | ERV 80 R EC | HRV 120 EC | HRV 120 R EC | ERV 120 EC | ERV 120 R EC | HRV 150 EC | HRV 150 R EC | ERV 150 EC | ERV 150 R EC |
Maximum continuous air flow capacity (at 0.1 in. w.g.) | 81 CFM | 189 CFM | 161 CFM | 150 CFM | 186 CFM | 181 CFM | ||||
Sensible recovery efficiency at 32°F (0`C) | 73% | 62% | 71% | 72% | 69% | 73% | ||||
Apparent Sensible Effectiveness at 32°f (0`C) | 82% | 69% | 73% | 74% | 78% | 82% | ||||
MERV6 supply/exhaust filters | Yes - All Models - Washable and replaceable | |||||||||
Sound level | 1.4 Sones | 1.9 Sones | 1.5 Sones | 2.1 Sones | 1.9 Sones | |||||
Fan efficacy | 1.72 CFM/W | 2.86 CFM/W | 2.78 CFM/W | 2.83 CFM/W | 2.56 CFM/W | |||||
Power consumption | 61 W | 204 W | 175 W | 186 W | 186 W | |||||
Recovery core | Enthalpy | Polystyrene cross-flow | Enthalpy | Polystyrene cross-flow | Enthalpy | |||||
Duct diameters | 5" Duct diameter | |||||||||
Dimensions (H x W x D) | 9 1/8”x 20 1/8” x 21 1/8” | 9 5/8”x 23 7/8” x 26 1/2” | 9 5/8”x 25 1/8” x 27 3/4” | |||||||
Fan defrost | Yes | Yes | Yes | Yes | Yes | |||||
Recirculation | Yes | Yes | Yes | Yes | Yes |
Downloads
The right Frigate/Brig for your home
Frigate/Brig Model | Max CFM | Recommended House Size |
Series 80 EC ERV | 93 | up to 1900 sq ft |
Series 120 EC ERV | 127 | up to 2700 sq ft |
Series 150 EC ERV | 178 | up to 3700 sq ft |
Brig 200 ERV | 213 | up to 4500 sq ft |
Brig 300 ERV | 257 | up to 5200 sq ft |
based on a dwelling with 9' ceilings. Check with your HVAC technician/installer for the most accurate data.
* Max CFM values can vary slightly between the ERV or HRV version in that series.
Download infographic - Vents CFM calculator
Why you need a Frigate ERV or HRV for your home
